Dixon Valve 2FBM1-B DF-Series Semi-Auto SS Coupler

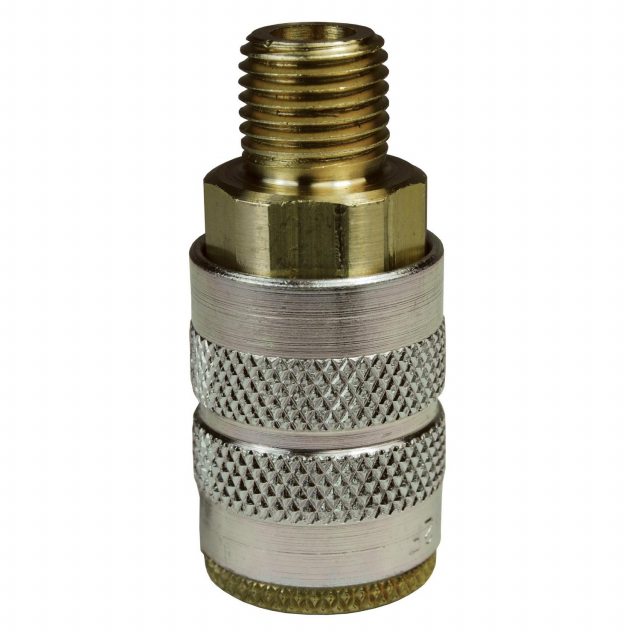

Dixon, 2FBM1-B, DF-Series 1/4" Industrial Semi-Auto Male Brass Coupler 1/8" BSPT

Specifications

• Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 bar) Maximum Working and 8,500 PSI (586 bar) Burst
• Rated pressure for connected Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 9,000 PSI (620 bar) Burst

Construction

• Machined components are manufactured using solid bar stock
• Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
• Nitrile (Buna-N) seals are standard
• Steel componentry is plated using ROHS Compliant Trivalent Chrome
• Steel sleeve and steel tubular valve

Compatibility & Interchange Data

• Foster 3, 4, 5 and 6 Series
• Parker 20-Series Manual Interchange
• Hansen 1000, 400 and 500

How it works

• To disconnect, begin by holding the hose on the nipple side with three of your fingers, leaving your thumb and index finger free
• Grab the sleeve with your thumb and index finger and begin to pull the sleeve towards the palm of your hand
• After pulling the sleeve, the nipple will move out of the coupler slightly. Continue to hold the hose and coupler sleeve until all air is fully exhausted
• After the line is fully exhausted, you are able to safely separate the nipple from the coupler

Safety notes

• It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure
