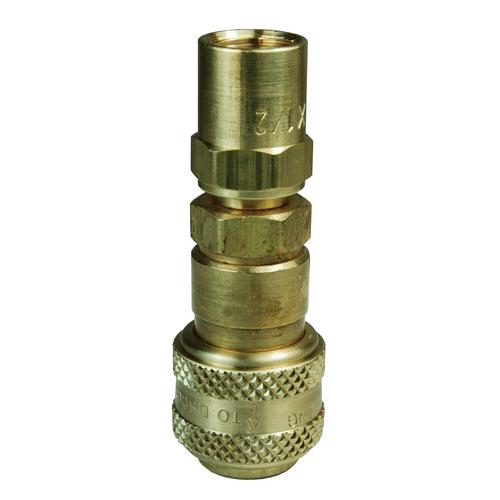

Dixon Valve 2DH2-B DF-Series Automatic Coupler Reusable

Dixon, 2DH2-B, DF-Series 1/4" Industrial Automatic Coupler Reusable Barb Hose 1/4" ID x 5/8" OD

Specifications

• Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 bar) Maximum Working and 16,000 PSI (1,100 bar) Burst
• Rated pressure for connected Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 16,000 PSI (1,100 bar) Burst

Construction

• Machined components are manufactured using solid bar stock
• Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
• Nitrile (Buna-N) seals are standard
• Steel componentry is plated using ROHS Compliant Trivalent Chrome
• Steel tubular valve

Compatibility & Interchange Data

• Foster 3, 4, 5 and 6 Series
• Parker 30 - Series Automatic Interchange
• Hansen 3000, 4000, 5000 and 6000

How it works

• To disconnect, begin by holding the hose on the nipple side with three of your fingers, leaving your thumb and index finger free
• Grab the sleeve with your thumb and index finger and begin to pull the sleeve towards the palm of your hand
• After pulling the sleeve, the nipple will move out of the coupler slightly. Continue to hold the hose and coupler sleeve until all air is fully exhausted
• After the line is fully exhausted, you are able to safely separate the nipple from the coupler

Safety notes

• It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure
• Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application
• Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death
• WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling
