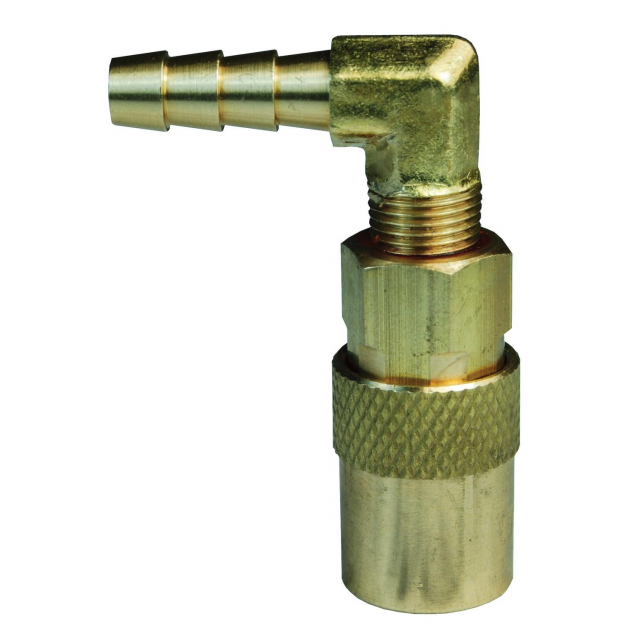

Dixon Valve 2CM9S2-B CM Valved Coupler 90 deg Hose Barb

Dixon, 2CM9S2-B, CM-Series 1/4" Mold Interchange Valved Coupler 90 deg 1/4" Hose Barb

Specifications

• Rated pressure for connected Brass Valved Coupler and Brass Plug: 300 PSI (20 bar) Maximum Working and 6,000 PSI (400 bar) Burst
• Rated pressure for connected Brass Valved Coupler and Steel Plug: 500 PSI (35 bar) Maximum Working and 6,100 PSI (400 bar) Burst

Construction

• Machined components are manufactured using solid bar stock
• Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
• Silicone gaskets and valve O-rings are standard

Compatibility & Interchange Data

• Mold Coolant Interchange
• Foster Series- FJT, Hansen Flo-Temp, Tomco MC-Series, Parker Moldmate, DME Jiffy-Tite

Safety notes

• Maximum working and burst pressure is based on a coupled set, contact Dixon for pressure ratings
• WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling
