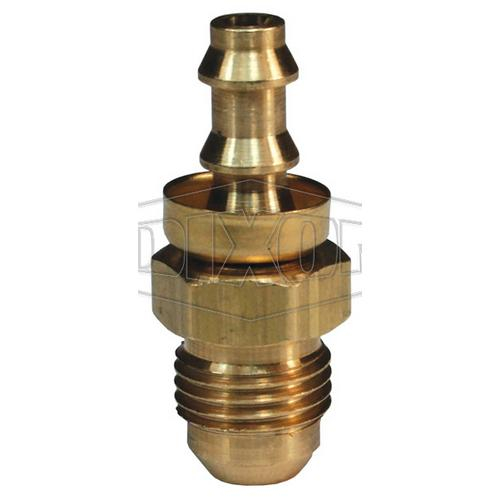

Dixon Valve 2861217CBC 37Deg JIC Male HB 3/4 x 1-1/16 w/ BC

37Deg JIC Male HB 3/4 X 1-1/16 w/ BC

Specifications:

• Number of Barbs: 3
• Barb Length: 1.50"

Installation:

• Trim hose end with a smooth square cut.
• Lubricate either Lok-On fitting, hose or both.
• Insert Lok-on fitting into hose until first barb is in the hose.
• Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from the end. Push with a steady force until the end of the hose is covered by the yellow plastic cap.

Instructions:

• Disassembly instructions:
• 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
• 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.

Note:

• No hose clamps or ferrules are needed

Safety notes:

• Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.
• Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
• WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
