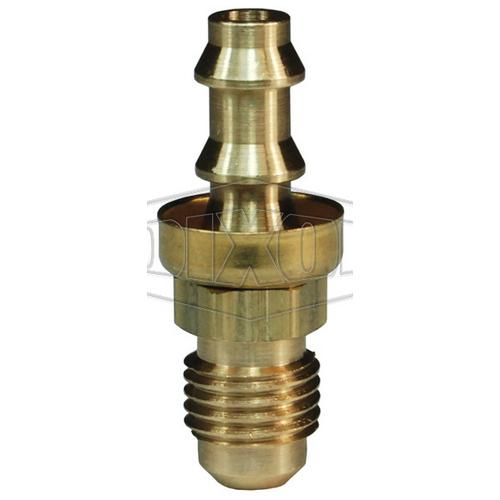

Dixon Valve 2820812CBC 45Deg SAE Swivel x Push-On Hose Barb 1/2 x 3/4

45Deg SAE Swivel x Push-on Hose Barb 1/2 X 3/4

Specifications:

• • Number of Barbs: 2
  • Barb Length: 1.02"

  Installation:

  • Assembly Instructions:
  • 1. Trim hose end with smooth square cut.
  • 2. Lubricate either push-on fitting, hose or both.
  • 3. Insert push-on fitting into hose until first barb is in hose.
  • 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.

  Note:

  • No hose clamps or ferrules are needed

  Instructions:

  • Disassembly instructions:
  • 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
  • 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.

  Safety notes:

  • Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.
  • Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
  • WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
