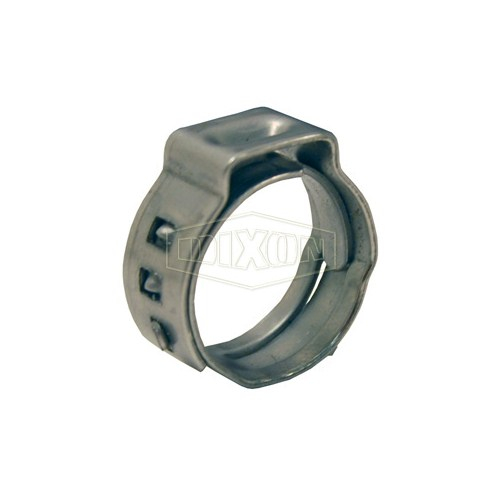

Dixon, 999, Stepless 9/16" 304 Stainless Steel Pinch-On Ear Clamp
Features
- Stepless® ear clamps hold against pressure and vibration or material shrinkage due to temperature changes or aging. A built-in spring action permits the clamp to breathe without loosening.
- Once installed and clamped, any tampering is easily visible
- Ensured clamping seal
- Smooth inner band prevents damage to the hose while the tongue-in-groove design provides a 360° seal.
- No steps or gaps inside the clamp
Applications
- For silicone, vinyl, polyurethane or other high-tech materials
- For low durometer and/or thin-walled hose/tubing
Installation
- Install clamps using 1098 or 1099 clamp tools
Note: When ordering Stepless® ear clamps, select the nominal size nearest to, but always larger than, the outside diameter of the material to be clamped. The outside diameter should be determined with connection fully assembled.
Safety Notes: Clamps are not reusable; they should not be pried open, doing so renders the clamps nonfunctional.
