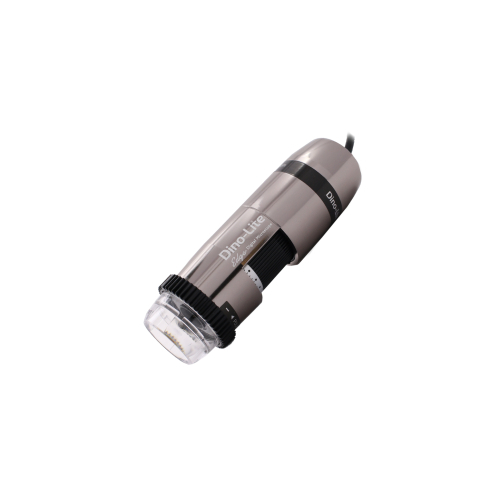

Dino-Lite AM7915MZTL Edge Microscope Metal Shell

Magnification Range: 10x - 140x
  • Brand Dino-Lite
  • Part # AM7915MZTL
  • Model # Edge
  • Condition
    Brand New
  • Manufacturer List Price
    $1,299.00
    • Our price is too low to show. See Price in Cart
  • Free Shipping

    This item qualifies for Free Ground...

Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Magnification Range:
Magnification Range: 10x - 140x

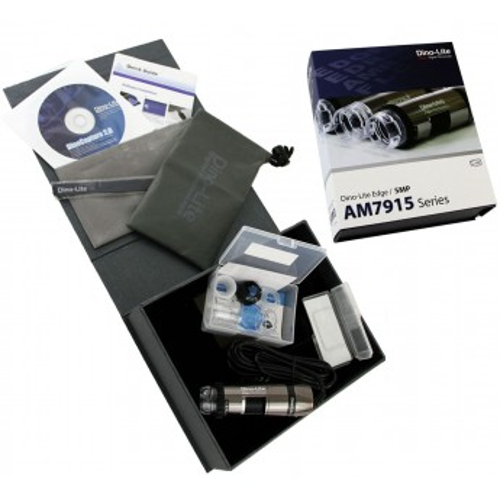

Includes:

Microscope and cables

All necessary cables are included. USB models are powered by the USB connection, analog (direct to monitor) models include a power adaptor cable.

Software and drivers CD

A CD containing all necessary software and drivers to use the device. For computers without a CD drive, the software can be downloaded from the Dino-Lite website.

Calibration target

A target to be used for calibrating measurements.

Alternate end caps

A selection of swapable end caps for different applications.

The Dino-Lite 5MP Edge AM7915MZTL delivers high-resolution imaging with a magnification range of 10x - 140x and a longer working distance. This model combines popular image processing feature Extended Depth of Field (EDOF), Extended Dynamic Range (EDR) and Automatic Magnification Reading (AMR). EDOF is an easy-to-use focus stacking feature which captures several images at different focus points and stacks them automatically into one clear image. For high contrast or reflective surfaces, EDR reveals the details of dark or bright areas by stacking images taken at different exposure levels.

Highlights:

10x - 140x Optical magnification power
2592 x 1944 pixels Capture in full detail with resolution up to 2592 x 1944 pixels
USB 2.0 Simple setup
Windows and Mac Compatible with Windows 7, 8, 10 and Mac OS 10.5+ including 32-bit and 64-bit systems.
Annotate and Measure Use simple tools to draw lines, shapes and text annotations on the image. Calibrate and measure dimensions including lines, circles and angles.
Polarizer Built-in adjustable polarizer greatly reduces glare on reflective surfaces.
Language options Software interface defaults to English and can be changed to any of 25 additional translations.
Barcode reader Software feature to use camera for reading from QR codes and over 20 other types of barcodes.
Extended Depth of Field Automatically capture and combine multiple images at different focus levels to produce a final image with greater depth of field.
Enhanced Dynamic Range Automatically capture and combine multiple images at different exposure levels to create an image with greater dynamic range.
Automatic Magnification Reading Allows the included software to read the magnification setting from the microscope device, simplifying the measuring process.
Flexible LED Control Additional LED controls within the included software for adjusting LED brightness and on / off toggle by quadrant.
Long Working Distance Lens system designed to provide magnification at a longer distance compared to typical microscopes.
Report incorrect product information
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
All sales are final
All sales are final
  • These are made-to-order items.
  • This product is not eligible for return or exchange unless defective.
  • The average lead-time is 1 or 2 weeks.

Technical Details

Optional Accessories
Reviews
LEDsWhite (8)
PolarizationYes
Dimensions10.5 cm. (L) x 3.2 cm. (D) / 4.13" x 1.26"
Weight135 g. / 4.76 oz
Cable Length182 cm. 71.65"
Magnification Range10x - 140x
Working DistanceLong
Lens TypeGlass
Megapixels5 MP
Sensor TypeCMOS
Resolution2592 x 1944 pixels
Frame Rate (max)30 FPS
Image Save Formats (Windows)BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Image Save Formats (Mac OS)JPEG, PNG
Video Save Formats (Windows)WMV, FLV, SWF
Video Save Formats (Mac OS)MOV
Connection TypeUSB 2.0
Included SoftwareDinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Imaging StandardsUVC
Flexible LED ControlYes
MeasurementYes
Automatic Magnification ReadingYes
Extended Depth of FieldYes (Windows PC required)
Enhanced Dynamic RangeYes (Windows PC required)
Magnification LockYes
Body MaterialAluminum Alloy
Microtouch SensorYes
Manufactured inTaiwan
Service and SupportU.S. (www.dinolite.us) English and Spanish
Regulatory ApprovalCE, FCC
Working distance and field of view:
Magnification- Working Distance (WD)
- Field of View (FOV)
- Depth of Field
10
  • 234.5 mm. / 9.232"
  • 39.0 mm. x 31.2 mm. / 1.535" x 1.228"
  • 12.0 mm. / 0.472"
20
  • 112.5 mm. / 4.429"
  • 19.5 mm. x 15.6 mm. / 0.768" x 0.614"
  • 4.5 mm. / 0.177"
30
  • 72.5 mm. / 2.854"
  • 13.0 mm. x 10.4 mm. / 0.512" x 0.409"
  • 3.1 mm. / 0.122"
40
  • 54.5 mm. / 2.146"
  • 9.8 mm. x 7.8 mm. / 0.386" x 0.307"
  • 1.8 mm. / 0.071"
50
  • 43.5 mm. / 1.713"
  • 7.8 mm. x 6.2 mm. / 0.307" x 0.244"
  • 1.2 mm. / 0.047"
60
  • 37.5 mm. / 1.476"
  • 6.5 mm. x 5.2 mm. / 0.256" x 0.205"
  • 0.9 mm. / 0.035"
70
  • 33.7 mm. / 1.327"
  • 5.6 mm. x 4.5 mm. / 0.220" x 0.177"
  • 0.6 mm. / 0.024"
80
  • 31.3 mm. / 1.232"
  • 4.9 mm. x 3.9 mm. / 0.193" x 0.154"
  • 0.5 mm. / 0.020"
90
  • 29.9 mm. / 1.177"
  • 4.3 mm. x 3.5 mm. / 0.169" x 0.138"
  • 0.37 mm. / 0.015"
100
  • 29.2 mm. / 1.150"
  • 3.9 mm. x 3.1 mm. / 0.154" x 0.122"
  • 0.28 mm. / 0.011"
110
  • 29.1 mm. / 1.146"
  • 3.5 mm. x 2.8 mm. / 0.138" x 0.110"
  • 0.22 mm. / 0.009"
120
  • 29.3 mm. / 1.154"
  • 3.3 mm. x 2.6 mm. / 0.130" x 0.102"
  • 0.17 mm. / 0.007"
130
  • 29.8 mm. / 1.173"
  • 3.0 mm. x 2.4 mm. / 0.118" x 0.094"
  • 0.12 mm. / 0.005"
140
  • 30.5 mm. / 1.201"
  • 2.8 mm. x 2.2 mm. / 0.110" x 0.087"
  • 0.09 mm. / 0.004"
Notes
