Dino-Lite AM7023B 30 FPS 20x 5MP USB Digital Camera, 30mm Diameter Eyepiece

30 FPS 20x 5MP USB Digital Camera, 30mm Diameter Eyepiece

Includes

	Camera & cables All ncessary cables are included. USB models are powered by the USB connection, analog (direct to monitor) models include a power adaptor cable.
	Software & drivers CD A CD containing all necessary software and drivers to use the device. For computers without a CD drive, the software can be downloaded from the Dino-Lite website.
	Calibration target A target to be used for calibrating measurements.
Carry Pouch

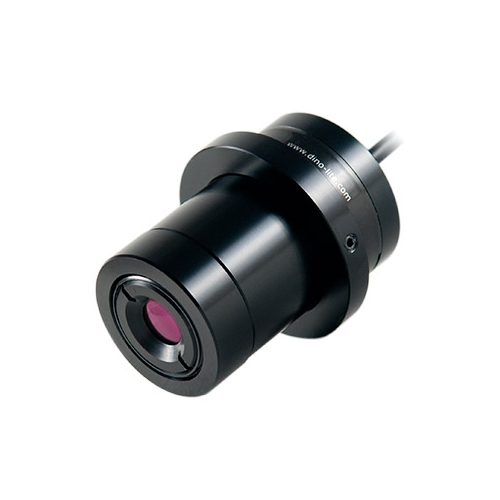

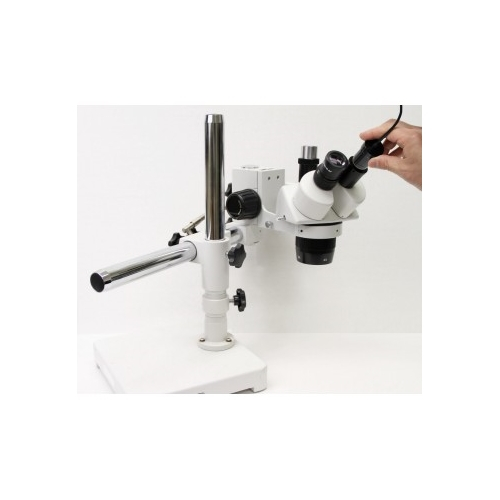

Dino-Eye AM7023B digital eyepiece is a USB 2.0 powered device that has 5MP of resolution providing large detailed viewing and images under the microscope with resolution up to 2592x1944. The eyepiece fits traditional microscopes with 30mm diameter eyepiece slots and 30.5mm diameter eyepiece slots with its included adapters. Simply remove the optical eyepiece and insert the Dino-Eye to digitalize a microscopy experience. The Dino-Eye can be found useful for using in either a production line or a laboratory for inspection and documentation. In addition to the merit of digitization, the user can find the experience of using a microscope to be more pleasant and comfortable especially for daily microscope users.

Features

	2592 x 1944 pixels Capture in full detail with resolution up to 2592 x 1944 pixels
	USB 2.0 Simple setup
	Windows and Mac Fully compatible with Windows XP, Vista, 7, 8, 10 & Mac OS 10.5+ including 32-bit and 64-bit systems.
	Annotate & Measure Use simple tools to draw lines, shapes, and text annotations on the image. Calibrate and measure dimensions including lines, circles, and angles.
	Two-year warranty & free tech support All Dino-Lite microscopes feature a two-year warranty and include free U.S. based tech support for the life of the product.
	Language options Software interface defaults to English and can be changed to any of 25 additional translations.
	Barcode reader Software feature to use camera for reading from QR codes and over 20 other types of barcodes.
