Dino-Lite, AM3111T, AM Series 30 FPS 10x ~ 50x / 230x 0.3MP Handheld Digital Microscope

Includes

	Microscope & cables All necessary cables are included. USB models are powered by the USB connection, analog (direct to monitor) models include a power adaptor cable.
	Software & drivers CD A CD containing all necessary software and drivers to use the device. For computers without a CD drive, the software can be downloaded from the dino-lite-digital-microscope website.

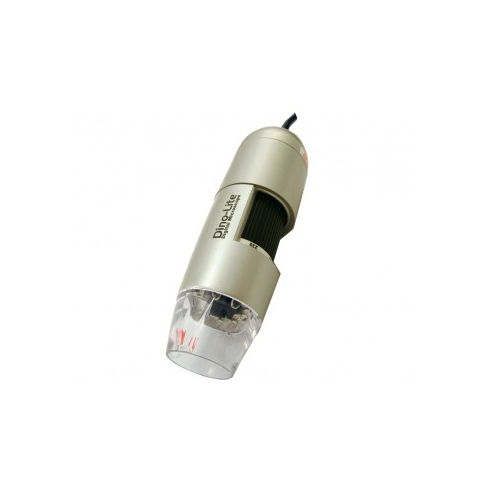

The dino-lite-digital-microscope AM3111T handheld digital microscope camera with MicroTouch has natural color technology providing colors true to their original appearance. The difference between the AM3111 and the AM3111T is the MicroTouch trigger which is a sensor that provides convenient snapshot ability without disturbing the image by moving a physical button. It also has enhanced low light capabilities where you can see objects clearly when there is minimal light available. The AM3111T has a refresh rate up to 30fps at 640 x 480 resolutions and can magnify objects up to 230x depending on working distance.

Features

	10x ~ 50x, 230x Optical magnification power
	640 x 480 pixels Capture in full detail with resolution up to 640 x 480 pixels
	USB 2.0 Simple setup
	Windows and Mac Fully compatible with Windows XP, Vista, 7, 8, 10 & Mac OS 10.5+ including 32-bit and 64-bit systems.
	Annotation tools Use simple tools to draw lines, shapes, and text annotations on the image.
	Two-year warranty & free tech support All dino-lite-digital-microscope microscopes feature a two-year warranty and include free U.S. based tech support for the life of the product.
	Language options Software interface defaults to English and can be changed to any of 25 additional translations.
	Barcode reader Software feature to use camera for reading from QR codes and over 20 other types of barcodes.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

LEDs	8
LED Type	White
Built-in Diffuser	No
Polarization	No
Excitation Wavelength (LED)	N/A
Emission Wavelength (Filter)	N/A
Strobe Light	No
Magnification Range	10x - 50x, 230x
Working Distance	Standard
Lens Type	Glass
Extended Depth of Field	No
Sensor Size	N/A
Sensor Type	CMOS
Resolution	640 x 480 pixels
Megapixels	0.3 MP
Frame Rate (max)	30 FPS
Enhanced Dynamic Range	No
Automatic Magnification Reading	No
Operating System	Windows XP, Vista, 7, 8, 10, Mac OS 10.5+
Connection Type	USB 2.0
Image Save Formats (Windows)	BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Video Save Formats (Windows)	WMV, FLV, SWF
Image Save Formats (Mac OS)	JPEG, PNG
Video Save Formats (Mac OS)	MOV
Imaging Standards	DirectShow, UVC
Dimensions	10.5cm (L) x 3.2cm (D) (4.13" x 1.26")
Weight	105g (3.7 oz)
Cable Length	182cm (71.65 in)
Magnification Lock	No
Body Material	ABS Plastic
Measurement	No
Microtouch Sensor	Yes
Regulatory Approval	CE, FCC

Working distance & field of view
Magnification	Working Distance		Field of View
	(mm)	(inch)	(mm)	(inch)
10	205	8.071	60 x 45	2.362 x 1.772
20	52	2.047	21 x 15.7	0.827 x 0.618
30	24	0.945	14 x 10.5	0.551 x 0.413
40	11	0.433	10.5 x 7.9	0.413 x 0.311
50	3.8	0.15	8.4 x 6.3	0.331 x 0.248
60	0	0	7.0 x 5.2	0.276 x 0.205
208	0	0	2 x 1.5	0.079 x 0.059
230	2.8	0.11	1.8 x 1.4	0.071 x 0.055

Product Details

LEDs	8
LED Type	White
Built-in Diffuser	No
Polarization	No
Excitation Wavelength (LED)	N/A
Emission Wavelength (Filter)	N/A
Strobe Light	No
Magnification Range	10x - 50x, 230x
Working Distance	Standard
Lens Type	Glass
Extended Depth of Field	No
Sensor Size	N/A
Sensor Type	CMOS
Resolution	640 x 480 pixels
Megapixels	0.3 MP
Frame Rate (max)	30 FPS
Enhanced Dynamic Range	No
Automatic Magnification Reading	No
Operating System	Windows XP, Vista, 7, 8, 10, Mac OS 10.5+
Connection Type	USB 2.0
Image Save Formats (Windows)	BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Video Save Formats (Windows)	WMV, FLV, SWF
Image Save Formats (Mac OS)	JPEG, PNG
Video Save Formats (Mac OS)	MOV
Imaging Standards	DirectShow, UVC
Dimensions	10.5cm (L) x 3.2cm (D) (4.13" x 1.26")
Weight	105g (3.7 oz)
Cable Length	182cm (71.65 in)
Magnification Lock	No
Body Material	ABS Plastic
Measurement	No
Microtouch Sensor	Yes
Regulatory Approval	CE, FCC

Working distance & field of view
Magnification	Working Distance		Field of View
	(mm)	(inch)	(mm)	(inch)
10	205	8.071	60 x 45	2.362 x 1.772
20	52	2.047	21 x 15.7	0.827 x 0.618
30	24	0.945	14 x 10.5	0.551 x 0.413
40	11	0.433	10.5 x 7.9	0.413 x 0.311
50	3.8	0.15	8.4 x 6.3	0.331 x 0.248
60	0	0	7.0 x 5.2	0.276 x 0.205
208	0	0	2 x 1.5	0.079 x 0.059
230	2.8	0.11	1.8 x 1.4	0.071 x 0.055
