Buy Digi-Sense WD-20250-54, Industrial Digital Multimeter, TRMS

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

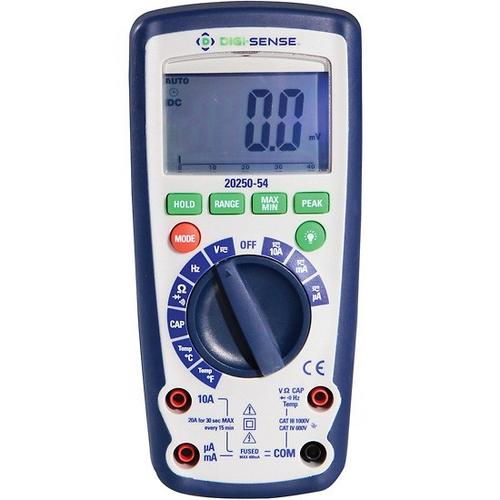

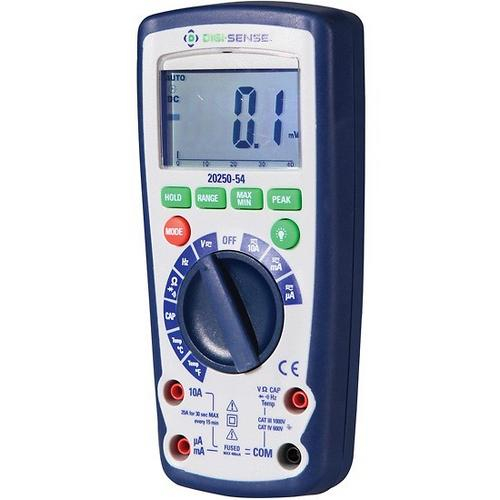

Digi-Sense, WD-20250-54, Industrial Digital Multimeter, TRMS, with NIST-Traceable Calibration

Waterproof, CAT IV 600 V and rugged ABS construction for heavy duty jobs.

Include:

Features:

CAT IV 600 V and CAT III 1000 V ratings for safety
IP67 certification for dustproof and waterproof protection
Bright backlight display with 1.1” tall digits and 4,000 counts
Built-in non-contact Voltage detector
Impact resistant double-molded plastic
Hold button for probing without continuously watching the display
Equipped with AC/DC voltage and current, capacitance, audible continuity test
10 functions including Frequency, duty cycle, diode test, and temperature measurement with a type K probe

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

DC Min (Volts)	0.4
DC Max (Volts)	1000
DC Voltage Accuracy	±1.0%
DC Min (amps)	0.0004
DC Max (amps)	10
DC Current Accuracy	±1.5%
AC Min (Volts)	0.4
AC Max (Volts)	1000
Ac Voltage Accuracy	±1.2%
AC Min (amps)	0.0004
AC Max (amps)	10
AC Current Accuracy	±1.8%
Resistance Min (Ω)	400
Resistance Max (MΩ)	40
Capacitance Min (nF)	40
Capacitance Max (nF)	40000000
Capacitance Accuracy	±3.0%
Frequency Min (Hz)	4
Frequency Max (MHz)	10
Frequency Accuracy	±1.2%
Resistivity Accuracy	±2.5%
Continuity	< 35 Ω
Diode Tester	1 mA
True Rms	Yes
Min Temperature (° F)	-4
Max Temperature (° F)	1400
Min Temperature (° C)	-20
Max Temperature (° C)	760
Temperature Accuracy	±3%
Count	4000
Digits	4
Safety Rating	CAT III 1000 V, Pollution degree 2, CAT IV 600 V
Power	9 V battery

DC Min (Volts)	0.4
DC Max (Volts)	1000
DC Voltage Accuracy	±1.0%
DC Min (amps)	0.0004
DC Max (amps)	10
DC Current Accuracy	±1.5%
AC Min (Volts)	0.4
AC Max (Volts)	1000
Ac Voltage Accuracy	±1.2%
AC Min (amps)	0.0004
AC Max (amps)	10
AC Current Accuracy	±1.8%
Resistance Min (Ω)	400
Resistance Max (MΩ)	40
Capacitance Min (nF)	40
Capacitance Max (nF)	40000000
Capacitance Accuracy	±3.0%
Frequency Min (Hz)	4
Frequency Max (MHz)	10
Frequency Accuracy	±1.2%
Resistivity Accuracy	±2.5%
Continuity	< 35 Ω
Diode Tester	1 mA
True Rms	Yes
Min Temperature (° F)	-4
Max Temperature (° F)	1400
Min Temperature (° C)	-20
Max Temperature (° C)	760
Temperature Accuracy	±3%
Count	4000
Digits	4
Safety Rating	CAT III 1000 V, Pollution degree 2, CAT IV 600 V
Power	9 V battery

Note: Please read description carefully. Do not base your order on the picture presented.
