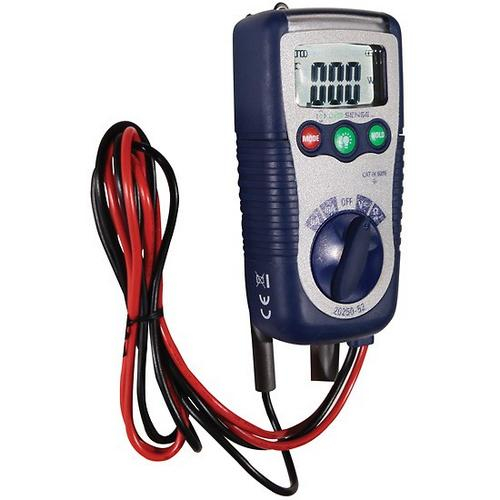

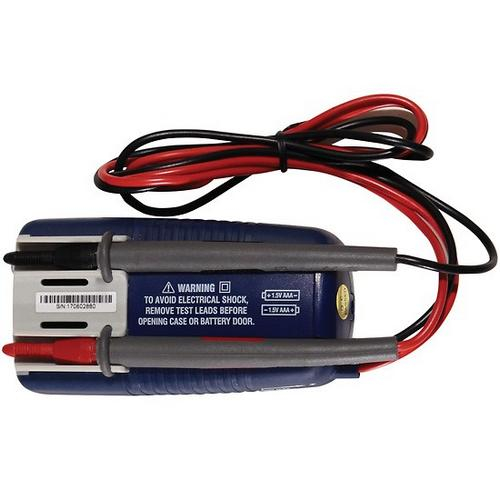

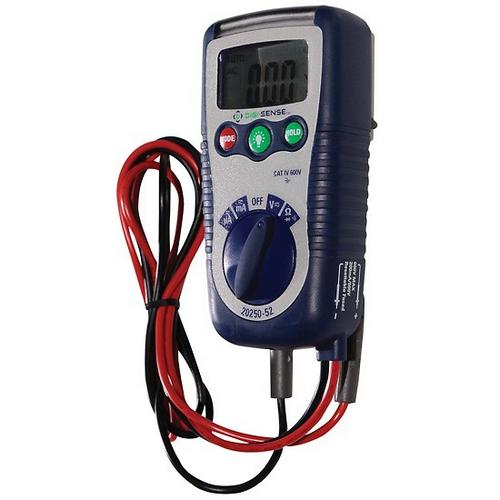

Digi-Sense, WD-20250-52, Three-in-One Digital Multimeter with NIST-Traceable Calibration

Calculate core electrical measurements

Include:

Test leads, two AAA batteries, and NIST-traceable calibration report with data supplied by InnoCal.

Features:

Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards
Carry anywhere due to its small size
Easily work in dark spaces with built-in flashlight
Auto-ranging for quick measuring
Permanently attached test leads so they will not get lost
Designed to protect you with CAT IV-600 V and CAT III-1000 V safety rating

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

DC Min (Volts)	0.2
DC Voltage Accuracy	±1.2%
DC Min (amps)	0.0002
DC Max (amps)	0.2
DC Current Accuracy	±2.0%
Current (AC/DC)	Yes
AC Min (Volts)	2
AC Max (Volts)	600
Ac Voltage Accuracy	±2.3%
AC Min (amps)	0.0002
AC Max (amps)	0.2
AC Current Accuracy	±2.5%
Resistance Min (Ω)	200
Resistance Max (MΩ)	20
Resistivity Accuracy	±10.0%
Continuity	< 150 Ω
Continuity / Diode Test	Yes
Diode Tester	Yes
Nc Voltage Detector	Yes
Count	2000
Digits	3-1/2
Safety Rating	CAT III 600V
Power	AAA batteries

Product Details

DC Min (Volts)	0.2
DC Voltage Accuracy	±1.2%
DC Min (amps)	0.0002
DC Max (amps)	0.2
DC Current Accuracy	±2.0%
Current (AC/DC)	Yes
AC Min (Volts)	2
AC Max (Volts)	600
Ac Voltage Accuracy	±2.3%
AC Min (amps)	0.0002
AC Max (amps)	0.2
AC Current Accuracy	±2.5%
Resistance Min (Ω)	200
Resistance Max (MΩ)	20
Resistivity Accuracy	±10.0%
Continuity	< 150 Ω
Continuity / Diode Test	Yes
Diode Tester	Yes
Nc Voltage Detector	Yes
Count	2000
Digits	3-1/2
Safety Rating	CAT III 600V
Power	AAA batteries
