Comark C9557 3059317 Dry Use Pressure Meter 0 to +/-7000 mbar

  • Brand Comark
  • Part # C9557
  • Model # 3059317
  • Condition
    Brand New
Comark C9557
Additional image #1 for Comark C9557

Buy in Bulk 4 Applicable Promotion(s)
Show All

  • Buy 5 pcs, get 4% off

    Save 4% each on Comark C9557 3059317 Dry Use Pressure Meter 0 to +/-7000 mbar when you purchase 5 or more

  • Buy 4 pcs, get 3% off

    Save 3% each on Comark C9557 3059317 Dry Use Pressure Meter 0 to +/-7000 mbar when you purchase 4 or more

  • Buy 3 pcs, get 2% off

    Save 2% each on Comark C9557 3059317 Dry Use Pressure Meter 0 to +/-7000 mbar when you purchase 3 or more

  • Buy 2 pcs, get 1% off

    Save 1% each on Comark C9557 3059317 Dry Use Pressure Meter 0 to +/-7000 mbar when you purchase 2 or more

Availability
Typically In Stock
Check Availability
Quantity
Share:

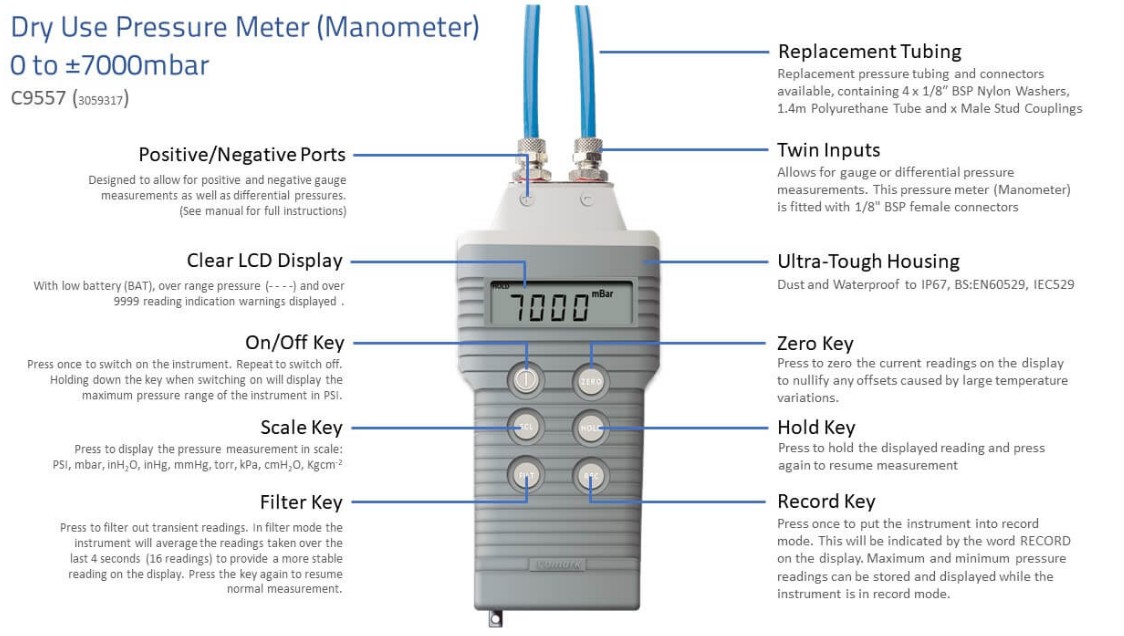

Comark, C9557, 3059317 Dry Use Pressure Meter 0 to ±7000 mbar

Features:

  • Pressure Measurement Range: 0 to ±7000 mBar;
  • Twin Inputs for Gauge or Differential Pressure;
  • Pressure units: PSI, mbar, in H2O, inHg, mmHg, torr, kPa, cmH2O, Kgcm2.

The Comark C9557 Dry Use Pressure Meter 0 to ±7000 mbar / Dry Use Manometer 0 to ±7000 mbar - combines high accuracy with speed of response and is designed to function between 0 to ±7000 mbar with twin inputs for positive / negative gauge or differential pressure measurement.



Twin Inputs

For gauge and differential pressure measurements using 1/8" BSP female connectors.


Auto Switch-Off Feature

Providing you with peace of mind usage, allowing you to focus on the task at hand.


Displayed Warnings

On-screen alerting of maximum over / under pressure as well as low-battery and over 9999 readings.


Multi-Function

Offers functions to show maximum pressure, minimum pressure, reading hold and averaged reading.


Tubing and Connectors

Supplied with 4" x 1/8" BSP Nylon Washers, 1.4 m. Polyurethane Tube SP Blue and 2 x Male Stud Coupling c/w Washer.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Reviews
Pressure Measurement Range0 to ±7000 mBar
Resolution1 mBar
Accuracy±0.2% of full scale (FS) at +23°C
Repeatability±0.1% of full scale (FS) at +23°C
Mean Temperature Coefficient of Reading< 0.1% per °C
Operating Temperature Range0 to 50°C
Humidity Range10 to 90% RH non-condensing
EMCTested to EN61326-1 Criteria B performance
Environmental ProtectionIP67, BS:EN60529, IEC529
Battery9V PP3 6F22 - MN1604 UCAR9V / 125 hours (using MN1604)
Low Battery WarningDisplays BAT just before end point of battery
Over Pressure Indication- - - -
Over 9999 Reading IndicationLowest 4 digits blink
Connections1/8" BSP female
Dimensions175 mm. x 82 mm. x 32 mm.
Weight330 gm. including battery
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Pressure Measurement Range0 to ±7000 mBar
Resolution1 mBar
Accuracy±0.2% of full scale (FS) at +23°C
Repeatability±0.1% of full scale (FS) at +23°C
Mean Temperature Coefficient of Reading< 0.1% per °C
Operating Temperature Range0 to 50°C
Humidity Range10 to 90% RH non-condensing
EMCTested to EN61326-1 Criteria B performance
Environmental ProtectionIP67, BS:EN60529, IEC529
Battery9V PP3 6F22 - MN1604 UCAR9V / 125 hours (using MN1604)
Low Battery WarningDisplays BAT just before end point of battery
Over Pressure Indication- - - -
Over 9999 Reading IndicationLowest 4 digits blink
Connections1/8" BSP female
Dimensions175 mm. x 82 mm. x 32 mm.
Weight330 gm. including battery
Note

Note: Please read description carefully. Do not base your order on the picture presented.
