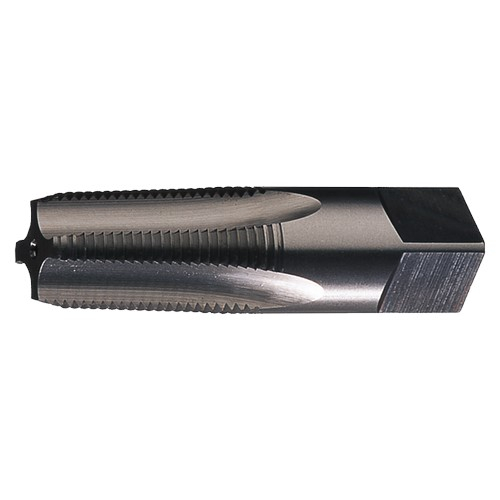

Buy Cleveland C64041, 1/2"-14 NPT Medium Hook Taper Pipe - Mega Depot

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features

List Style: 965
Material: HSS
Shank: Straight w/ Square
Tap Blank Construction: USCTI Table 311
Tap Chamfer: Taper Pipe
Tap Construction: Medium Hook Taper
Tap Style: Pipe Tap
Surface Condition: Bright
Thread Size: 1/2-14
Thread Form: NPT
Number of Flutes: 4
Decimal Equivalent: 0.5000" / 12.70mm
Shank Diameter: 0.6875" / 17.46mm
Shank Square Size: 0.5150" / 13.08mm
Shank Square Length: 0.6250" / 15.88mm
Thread Length: 1.3750" / 34.92mm
Overall Length: 3.1250" / 79.38mm

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
List Style Number	965
Set	No
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	NPT
Thread Length	1.3750"
Thread Length (Metric)	34.92mm
Thread Pitch	14
Thread Size	1/2"
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	4
Shank Configuration	Straight w/ Square
Surface Condition	Bright
Tap Blank Construction	USCTI Table 311
Tap Chamfer	Semi-Bottoming
Tap Construction	Medium Hook Taper
Tap Ground Threads	Yes
Tap Hook	Medium (5-10)
Tap Interrupted Thread	No
Tap Spiral Point	No
Tap Style	Tapered Pipe Tap
Tap Truncated Threads	No
Tap Type	Pipe Tap
Tool Size	1/2-14 NPT
Dimensions
Diameter	0.5000"
Overall Length	3.1250"
Overall Length (Metric)	79.38mm
Shank Size	0.6875"
Shank Size (Metric)	17.46mm
Shank Square Length	0.6250"
Shank Square Length (Metric)	15.88mm
Shank Square Size	0.5150"
Shank Square Size (Metric)	13.08mm
Tap Standard Projection	0.5790"
Application
Material Application	N: Non-ferrous Metal, P: Steel
Operation Type	Blind Hole

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

General
List Style Number	965
Set	No
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	NPT
Thread Length	1.3750"
Thread Length (Metric)	34.92mm
Thread Pitch	14
Thread Size	1/2"
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	4
Shank Configuration	Straight w/ Square
Surface Condition	Bright
Tap Blank Construction	USCTI Table 311
Tap Chamfer	Semi-Bottoming
Tap Construction	Medium Hook Taper
Tap Ground Threads	Yes
Tap Hook	Medium (5-10)
Tap Interrupted Thread	No
Tap Spiral Point	No
Tap Style	Tapered Pipe Tap
Tap Truncated Threads	No
Tap Type	Pipe Tap
Tool Size	1/2-14 NPT
Dimensions
Diameter	0.5000"
Overall Length	3.1250"
Overall Length (Metric)	79.38mm
Shank Size	0.6875"
Shank Size (Metric)	17.46mm
Shank Square Length	0.6250"
Shank Square Length (Metric)	15.88mm
Shank Square Size	0.5150"
Shank Square Size (Metric)	13.08mm
Tap Standard Projection	0.5790"
Application
Material Application	N: Non-ferrous Metal, P: Steel
Operation Type	Blind Hole
