Cleveland, C40361, 1" x 1" x 3" PM-539R TiCN Powder Metal High-Helix Finishing End Mill

Features

ANSI Sizes
High Performance
3 Flute CC
Powder Metal Substrate
Exceptional speeds in aluminum.
Quiet, chatter-free machining and high shear cutting.
TiCN

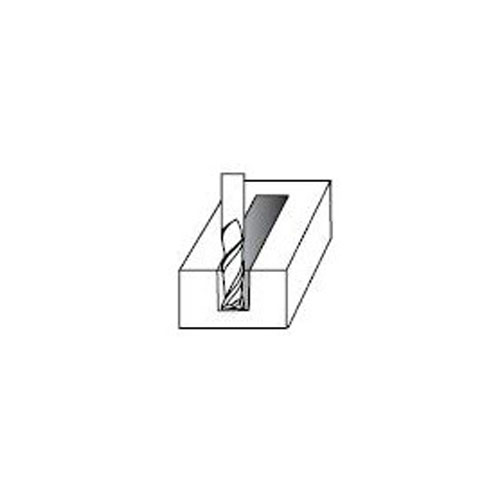

Applications

Aluminum
Non-Ferrous Materials

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

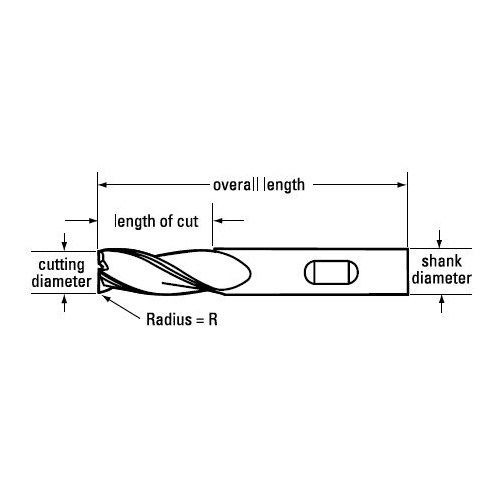

Technical Details

List Style	PM-539R
Construction	High Performance Finisher
Material	Powdered Metal
Shank	Straight with Weldon Flats
Hand of Spiral Cut	RHS / RHC
Center Cutting	Yes
Double Ended	No
End Style	Corner Radius
Number of Flutes	3
Corner Radius	0.000"
Surface Condition	TiCN
Diameter Fractional	1"
Decimal Equivalent	1.0000" / 25.40mm
Shank Diameter	1.0000" / 25.40mm
Length of Cut	3.0000" / 76.20mm
Overall Length	5.5000" / 139.70mm

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

List Style	PM-539R
Construction	High Performance Finisher
Material	Powdered Metal
Shank	Straight with Weldon Flats
Hand of Spiral Cut	RHS / RHC
Center Cutting	Yes
Double Ended	No
End Style	Corner Radius
Number of Flutes	3
Corner Radius	0.000"
Surface Condition	TiCN
Diameter Fractional	1"
Decimal Equivalent	1.0000" / 25.40mm
Shank Diameter	1.0000" / 25.40mm
Length of Cut	3.0000" / 76.20mm
Overall Length	5.5000" / 139.70mm

Note: Please read description carefully. Do not base your order on the picture presented.
