Options and Related Products

Corner Radius:: Corner Radius: 0.12"
End Mill Diameter:: End Mill Diameter: 1"
Length of Cut:: Length of Cut: 2"

Cleveland, C40041, 1" x 1" x 2" PM-538R TiCN Powder Metal Special Profile Roughing End Mill, .12" Corner Radius

Features

ANSI Sizes
High Performance
3 Flute CC
Coarse Profile
Powder Metal Substrate
TiCN
For High Volume Aluminum Roughing

Applications

Aluminum
Non-Ferrous Materials
Copper Alloys

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

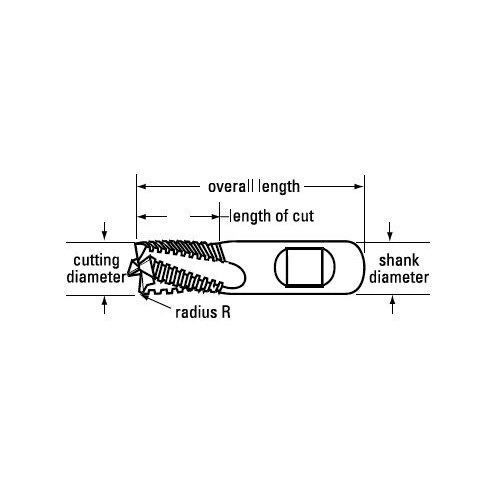

Technical Details

List Style	PM-538R
Construction	High Performance Finisher
Material	Powdered Metal
Shank	Straight with Weldon Flats
Hand of Spiral Cut	RHS / RHC
Center Cutting	Yes
Double Ended	No
End Style	Corner Radius
Number of Flutes	3
Corner Radius	0.120"
Surface Condition	TiCN
Diameter Fractional	1"
Decimal Equivalent	1.0000" / 25.40mm
Shank Diameter	1.0000" / 25.40mm
Length of Cut	2.0000" / 50.80mm
Overall Length	4.5000" / 114.30mm

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

List Style	PM-538R
Construction	High Performance Finisher
Material	Powdered Metal
Shank	Straight with Weldon Flats
Hand of Spiral Cut	RHS / RHC
Center Cutting	Yes
Double Ended	No
End Style	Corner Radius
Number of Flutes	3
Corner Radius	0.120"
Surface Condition	TiCN
Diameter Fractional	1"
Decimal Equivalent	1.0000" / 25.40mm
Shank Diameter	1.0000" / 25.40mm
Length of Cut	2.0000" / 50.80mm
Overall Length	4.5000" / 114.30mm

Note: Please read description carefully. Do not base your order on the picture presented.
