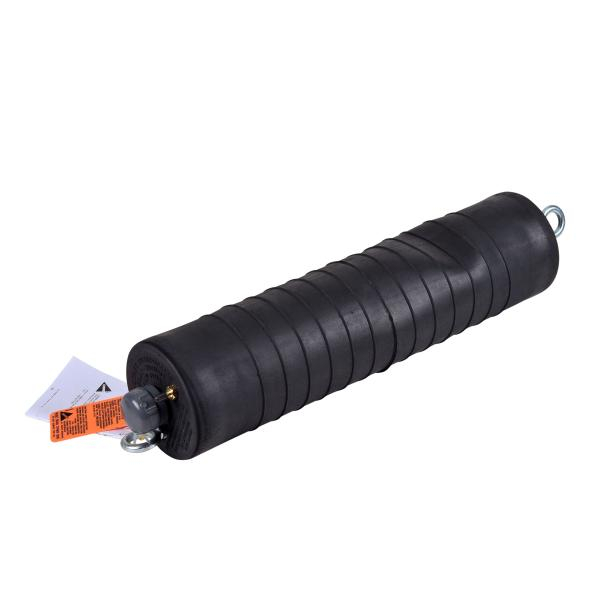

Cherne 355128 Muni-Ball Plug 6" - 12" with 1" Female NPT Bypass

Nominal Size: 6" - 12"
  • Brand Cherne
  • Part # 355128
  • Model # Muni-Ball
Availability
Discontinued
Share:

Replacement

This product is discontinued, no longer available. Replacement part numbers:

Options and Related Products

Nominal Size:
Nominal Size: 6" - 12"

Features

  • Muni-Ball® Plugs are designed with 1/4" Shrader Tire inflation valve
  • Larger diameter Muni-Ball® Plugs include a removable threaded valve, allowing the user to replace with quick disconnect fittings
  • Muni-Balls with flexible bypass are bendable to 90°
  • Multi-Size® Muni-Ball® Plugs allow more options and less inventory

The Muni-Ball® Plug was introduced over 50 years ago and the Cherne brand continues to be the most trusted name in pneumatic plugs.

The Muni-Ball Plug offers a full bypass allowing both testing and monitoring of the piping system. The Cherne Muni-Ball® is ideal for installation and repair of residential or commercial piping applications. Cherne Muni-Ball® products can be used for maintenance of municipal infrastructure, including sanitary and storm sewer pipe systems. Muni-Ball® plugs are durable, rugged and are effective on almost any type of pipe.

Report incorrect product information
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Nominal Size6" - 12" (150-300 mm)
Range of Use5.50"-12.25" (150-300 mm)
Maximum Back Pressure13 psi (0.9 bar) 30 ft. (9.1 m)
Deflated Length26.25" (667 mm)
Product Weight8.5 lbs (3.9 kg)
Inflation Pressure30 psi (2.1 bar)
Deflated Diameter5.25" (133 mm)
Inflation Thread1/4"
Chain / Eye bolts3/8" (1)
Bypass Diameter1" FNP
Notes

***

warningWARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details
Nominal Size6" - 12" (150-300 mm)
Range of Use5.50"-12.25" (150-300 mm)
Maximum Back Pressure13 psi (0.9 bar) 30 ft. (9.1 m)
Deflated Length26.25" (667 mm)
Product Weight8.5 lbs (3.9 kg)
Inflation Pressure30 psi (2.1 bar)
Deflated Diameter5.25" (133 mm)
Inflation Thread1/4"
Chain / Eye bolts3/8" (1)
Bypass Diameter1" FNP
Note

Note: Please read description carefully. Do not base your order on the picture presented.
