Features:
- ±0.25% Test Gauge Accuracy
- 316L Stainless Steel Wetted Parts
- ADA: Dual Programmable Alarms
- Low Voltage Powered
Cecomp Digital Pressure Gauge with Programmable Alarms Series F16ADAN. Programmable dual form C (SPDT) relay contacts for HI/LO, HI/HI, LO/LO, normal or reverse acting with 1% deadband, or adjustable trip and reset points for each relay, manual or auto acknowledge. 1A/24VDC, 0.5A/115VAC, non-inductive 120 milliseconds typical response time. NEMA 4X ABS/polycarbonate case, rear gasket, polycarbonate label. 4 readings per second nominal display update rate. Accuracy includes linearity, hysteresis, repeatability. 1/4" NPT male fitting, all wetted parts are 316L stainless steel.
For more information, please see

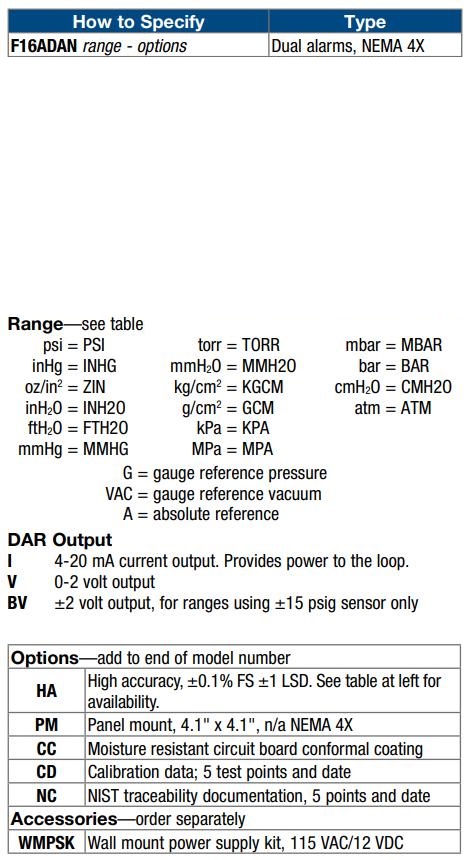

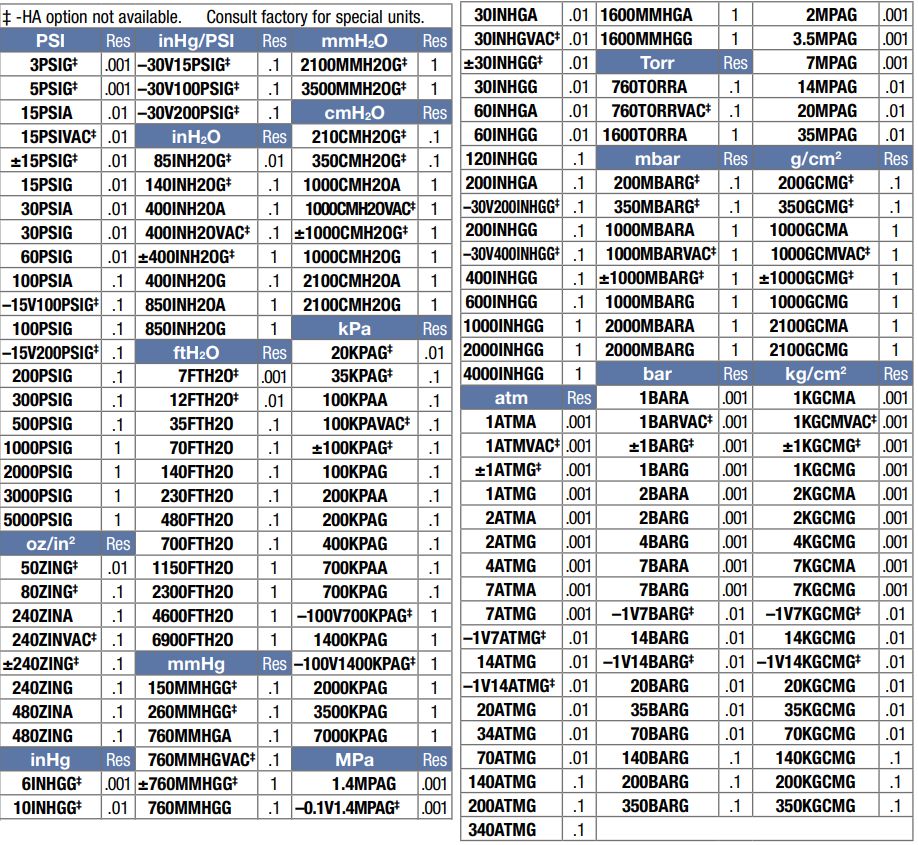

Data Sheet
Meantime you may review Cecomp bestsellers or review the list of all available Cecomp products in the table below.
You may request a quote for a specific product or just contact us at any time
For more products see Product List
| Part Number |
| F16ADAN 15PSIA |
| F16ADAN 15PSIA-HA |
| F16ADAN 15PSIA-CC |
| F16ADAN 15PSIA-CD |
| F16ADAN 15PSIA-NC |
| F16ADAN 15PSIA-HA-CC |
| F16ADAN 15PSIA-HA-CD |
| F16ADAN 15PSIA-HA-NC |
| F16ADAN 15PSIA-CC-CD |
| F16ADAN 15PSIA-CC-NC |
| F16ADAN 15PSIA-CD-NC |
| F16ADAN 15PSIA-HA-CC-CD |
| F16ADAN 15PSIA-HA-CC-NC |
| F16ADAN 15PSIA-HA-CD-NC |
| F16ADAN 15PSIA-CC-CD-NC |
| F16ADAN 15PSIA-HA-CC-CD-NC |
| F16ADAN 15PSIG |
| F16ADAN 15PSIG-HA |
| F16ADAN 15PSIG-CC |
| F16ADAN 15PSIG-CD |
| F16ADAN 15PSIG-NC |
| F16ADAN 15PSIG-HA-CC |
| F16ADAN 15PSIG-HA-CD |
| F16ADAN 15PSIG-HA-NC |
| F16ADAN 15PSIG-CC-CD |
| F16ADAN 15PSIG-CC-NC |
| F16ADAN 15PSIG-CD-NC |
| F16ADAN 15PSIG-HA-CC-CD |
| F16ADAN 15PSIG-HA-CC-NC |
| F16ADAN 15PSIG-HA-CD-NC |
| F16ADAN 15PSIG-CC-CD-NC |
| F16ADAN 15PSIG-HA-CC-CD-NC |
| F16ADAN 30PSIA |
| F16ADAN 30PSIA-HA |
| F16ADAN 30PSIA-CC |
| F16ADAN 30PSIA-CD |
| F16ADAN 30PSIA-NC |
| F16ADAN 30PSIA-HA-CC |
| F16ADAN 30PSIA-HA-CD |
| F16ADAN 30PSIA-HA-NC |
| F16ADAN 30PSIA-CC-CD |
| F16ADAN 30PSIA-CC-NC |
| F16ADAN 30PSIA-CD-NC |
| F16ADAN 30PSIA-HA-CC-CD |
| F16ADAN 30PSIA-HA-CC-NC |
| F16ADAN 30PSIA-HA-CD-NC |
| F16ADAN 30PSIA-CC-CD-NC |
| F16ADAN 30PSIA-HA-CC-CD-NC |
| F16ADAN 30PSIG |
| F16ADAN 30PSIG-HA |
| F16ADAN 30PSIG-CC |
| F16ADAN 30PSIG-CD |
| F16ADAN 30PSIG-NC |
| F16ADAN 30PSIG-HA-CC |
| F16ADAN 30PSIG-HA-CD |
| F16ADAN 30PSIG-HA-NC |
| F16ADAN 30PSIG-CC-CD |
| F16ADAN 30PSIG-CC-NC |
| F16ADAN 30PSIG-CD-NC |
| F16ADAN 30PSIG-HA-CC-CD |
| F16ADAN 30PSIG-HA-CC-NC |
| F16ADAN 30PSIG-HA-CD-NC |
| F16ADAN 30PSIG-CC-CD-NC |
| F16ADAN 30PSIG-HA-CC-CD-NC |
| F16ADAN 60PSIG |
| F16ADAN 60PSIG-HA |
| F16ADAN 60PSIG-CC |
| F16ADAN 60PSIG-CD |
| F16ADAN 60PSIG-NC |
| F16ADAN 60PSIG-HA-CC |
| F16ADAN 60PSIG-HA-CD |
| F16ADAN 60PSIG-HA-NC |
| F16ADAN 60PSIG-CC-CD |
| F16ADAN 60PSIG-CC-NC |
| F16ADAN 60PSIG-CD-NC |
| F16ADAN 60PSIG-HA-CC-CD |
| F16ADAN 60PSIG-HA-CC-NC |
| F16ADAN 60PSIG-HA-CD-NC |
| F16ADAN 60PSIG-CC-CD-NC |
| F16ADAN 60PSIG-HA-CC-CD-NC |
| F16ADAN 100PSIA |
| F16ADAN 100PSIA-HA |
| F16ADAN 100PSIA-CC |
| F16ADAN 100PSIA-CD |
| F16ADAN 100PSIA-NC |
| F16ADAN 100PSIA-HA-CC |
| F16ADAN 100PSIA-HA-CD |
| F16ADAN 100PSIA-HA-NC |
| F16ADAN 100PSIA-CC-CD |
| F16ADAN 100PSIA-CC-NC |
| F16ADAN 100PSIA-CD-NC |
| F16ADAN 100PSIA-HA-CC-CD |
| F16ADAN 100PSIA-HA-CC-NC |
| F16ADAN 100PSIA-HA-CD-NC |
| F16ADAN 100PSIA-CC-CD-NC |
| F16ADAN 100PSIA-HA-CC-CD-NC |
| F16ADAN 100PSIG |
| F16ADAN 100PSIG-HA |
| F16ADAN 100PSIG-CC |
| F16ADAN 100PSIG-CD |
| F16ADAN 100PSIG-NC |
| F16ADAN 100PSIG-HA-CC |
| F16ADAN 100PSIG-HA-CD |
| F16ADAN 100PSIG-HA-NC |
| F16ADAN 100PSIG-CC-CD |
| F16ADAN 100PSIG-CC-NC |
| F16ADAN 100PSIG-CD-NC |
| F16ADAN 100PSIG-HA-CC-CD |
| F16ADAN 100PSIG-HA-CC-NC |
| F16ADAN 100PSIG-HA-CD-NC |
| F16ADAN 100PSIG-CC-CD-NC |
| F16ADAN 100PSIG-HA-CC-CD-NC |
| F16ADAN 200PSIG |
| F16ADAN 200PSIG-HA |
| F16ADAN 200PSIG-CC |
| F16ADAN 200PSIG-CD |
| F16ADAN 200PSIG-NC |
| F16ADAN 200PSIG-HA-CC |
| F16ADAN 200PSIG-HA-CD |
| F16ADAN 200PSIG-HA-NC |
| F16ADAN 200PSIG-CC-CD |
| F16ADAN 200PSIG-CC-NC |
| F16ADAN 200PSIG-CD-NC |
| F16ADAN 200PSIG-HA-CC-CD |
| F16ADAN 200PSIG-HA-CC-NC |
| F16ADAN 200PSIG-HA-CD-NC |
| F16ADAN 200PSIG-CC-CD-NC |
| F16ADAN 200PSIG-HA-CC-CD-NC |
| F16ADAN 300PSIG |
| F16ADAN 300PSIG-HA |
| F16ADAN 300PSIG-CC |
| F16ADAN 300PSIG-CD |
| F16ADAN 300PSIG-NC |
| F16ADAN 300PSIG-HA-CC |
| F16ADAN 300PSIG-HA-CD |
| F16ADAN 300PSIG-HA-NC |
| F16ADAN 300PSIG-CC-CD |
| F16ADAN 300PSIG-CC-NC |
| F16ADAN 300PSIG-CD-NC |
| F16ADAN 300PSIG-HA-CC-CD |
| F16ADAN 300PSIG-HA-CC-NC |
| F16ADAN 300PSIG-HA-CD-NC |
| F16ADAN 300PSIG-CC-CD-NC |
| F16ADAN 300PSIG-HA-CC-CD-NC |
| F16ADAN 500PSIG |
| F16ADAN 500PSIG-HA |
| F16ADAN 500PSIG-CC |
| F16ADAN 500PSIG-CD |
| F16ADAN 500PSIG-NC |
| F16ADAN 500PSIG-HA-CC |
| F16ADAN 500PSIG-HA-CD |
| F16ADAN 500PSIG-HA-NC |
| F16ADAN 500PSIG-CC-CD |
| F16ADAN 500PSIG-CC-NC |
| F16ADAN 500PSIG-CD-NC |
| F16ADAN 500PSIG-HA-CC-CD |
| F16ADAN 500PSIG-HA-CC-NC |
| F16ADAN 500PSIG-HA-CD-NC |
| F16ADAN 500PSIG-CC-CD-NC |
| F16ADAN 500PSIG-HA-CC-CD-NC |
| F16ADAN 1000PSIG |
| F16ADAN 1000PSIG-HA |
| F16ADAN 1000PSIG-CC |
| F16ADAN 1000PSIG-CD |
| F16ADAN 1000PSIG-NC |
| F16ADAN 1000PSIG-HA-CC |
| F16ADAN 1000PSIG-HA-CD |
| F16ADAN 1000PSIG-HA-NC |
| F16ADAN 1000PSIG-CC-CD |
| F16ADAN 1000PSIG-CC-NC |
| F16ADAN 1000PSIG-CD-NC |
| F16ADAN 1000PSIG-HA-CC-CD |
| F16ADAN 1000PSIG-HA-CC-NC |
| F16ADAN 1000PSIG-HA-CD-NC |
| F16ADAN 1000PSIG-CC-CD-NC |
| F16ADAN 1000PSIG-HA-CC-CD-NC |
| F16ADAN 2000PSIG |
| F16ADAN 2000PSIG-HA |
| F16ADAN 2000PSIG-CC |
| F16ADAN 2000PSIG-CD |
| F16ADAN 2000PSIG-NC |
| F16ADAN 2000PSIG-HA-CC |
| F16ADAN 2000PSIG-HA-CD |
| F16ADAN 2000PSIG-HA-NC |
| F16ADAN 2000PSIG-CC-CD |
| F16ADAN 2000PSIG-CC-NC |
| F16ADAN 2000PSIG-CD-NC |
| F16ADAN 2000PSIG-HA-CC-CD |
| F16ADAN 2000PSIG-HA-CC-NC |
| F16ADAN 2000PSIG-HA-CD-NC |
| F16ADAN 2000PSIG-CC-CD-NC |
| F16ADAN 2000PSIG-HA-CC-CD-NC |
| F16ADAN 3000PSIG |
| F16ADAN 3000PSIG-HA |
| F16ADAN 3000PSIG-CC |
| F16ADAN 3000PSIG-CD |
| F16ADAN 3000PSIG-NC |
| F16ADAN 3000PSIG-HA-CC |
| F16ADAN 3000PSIG-HA-CD |
| F16ADAN 3000PSIG-HA-NC |
