Brady HX-C-250-WT-J PermaSleeve White 0.25" x 175' Cable Tubing

Sleeve Length (ft): 175, Color: White
  • Brand Brady
  • Part # HX-C-250-WT-J
  • Model # PermaSleeve
  • Condition
    Brand New

Contact Us For Pricing

Buy in Bulk 4 Applicable Promotion(s)
Show All

  • Buy 10 pcs, get 5% off

    Save 5% each on Brady HX-C-250-WT-J PermaSleeve White 0.25" x 175' Cable Tubing when you purchase 10 or more

  • Buy 5 pcs, get 4% off

    Save 4% each on Brady HX-C-250-WT-J PermaSleeve White 0.25" x 175' Cable Tubing when you purchase 5 or more

  • Buy 3 pcs, get 3% off

    Save 3% each on Brady HX-C-250-WT-J PermaSleeve White 0.25" x 175' Cable Tubing when you purchase 3 or more

  • Buy 2 pcs, get 2% off

    Save 2% each on Brady HX-C-250-WT-J PermaSleeve White 0.25" x 175' Cable Tubing when you purchase 2 or more

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Sleeve Length (ft):
Sleeve Length (ft): 175
Color:
Color: White

Brady, HX-C-250-WT-J, PermaSleeve White 0.25" x 175' 2:1 Heat Shrink Wire and Cable Tubing for 3" Core Printers

Features:

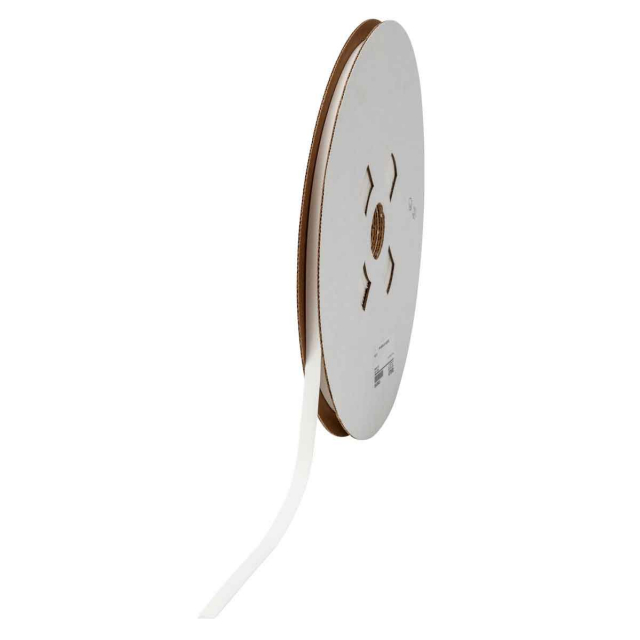

  • Supplied roll form in a flattened format on a carrier designed for use with computer-driven printers
  • Meets SAE-AMS-DTL-23053/5 Class 1 and 3, SAE-AS-81531, MIL-STD-2002
  • Tested per ASTM E162 and ASTM E662
  • Operating temperature of -40°F to 248°F (-40°C to 120°C)
  • A ribbon is required to print this material. Use Part Number R6406

Applications:

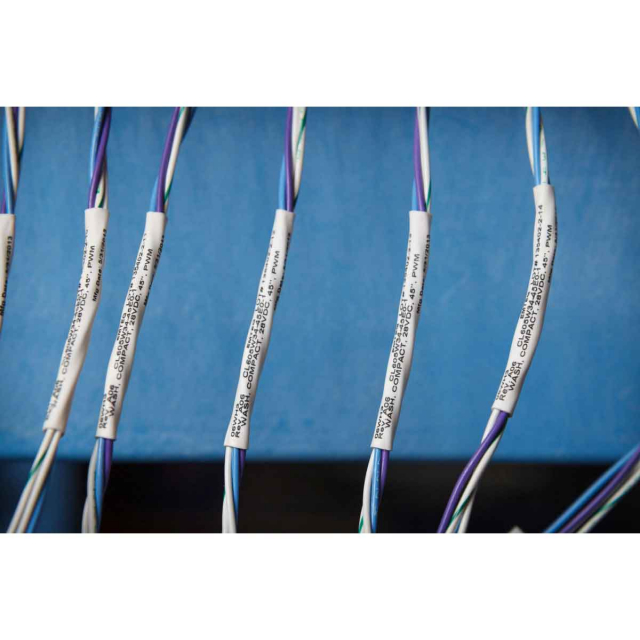

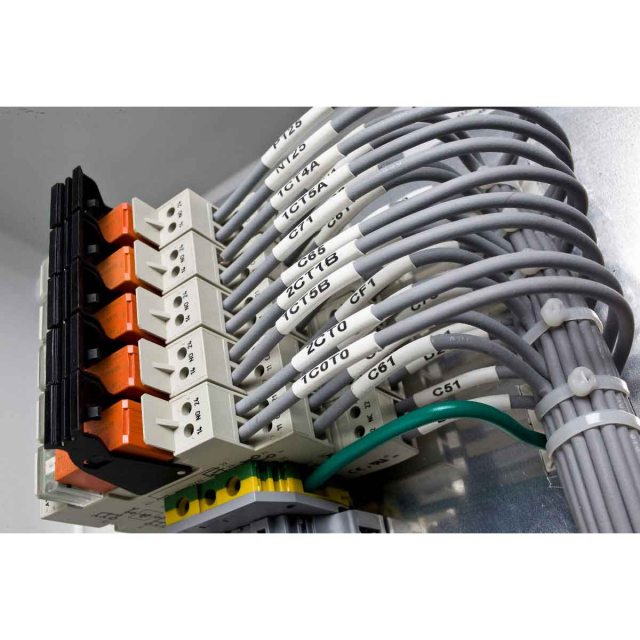

  • Wire and Cable Labeling

Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Printable SidesSingle-Side Printable
RoHS Compliance StatusCompliant with Directive 2011/65/EU and 2015/863
Core Diameter1.625 in

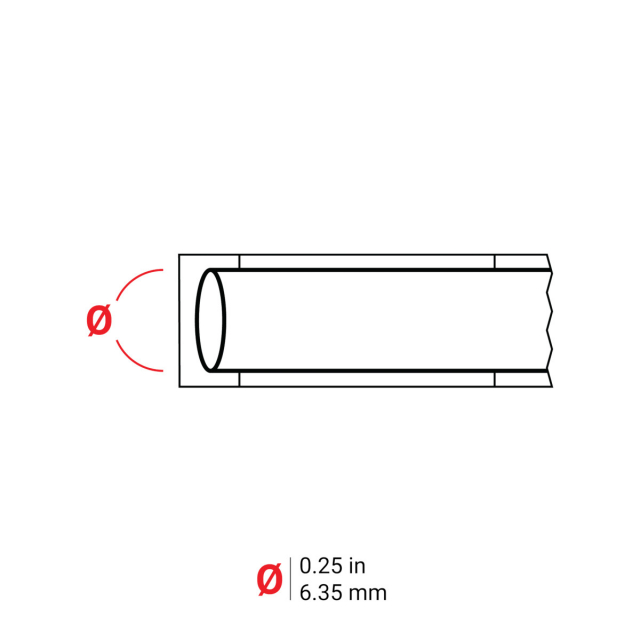

Diameter as Supplied0.25 in
Height0.439 in
Recovered Diameter0.125 in
Recovered Wall Thickness0.025 in
Roll Length175 ft
Sleeve Size0.25 in Dia x 175 ft L
ECCN (Export Commodity Control Number)EAR99
HTS Code (Harmonized Tariff Schedule)8443.99.2550
Country of OriginUnited States of America
Print TechnologyThermal Transfer
Label PropertiesHeat Shrink
Material PropertiesHeat-shrinkable
ColorWhite
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-resistant, Self-Extinguishing, Smear-resistant
Material NumberB-7642
FinishMatte
Shrink Ratio2:1
Service Temperature Range °F-40 °F - 248 °F
Recommended RibbonR6406
Printer CompatibilityBBP72, i7100, THT 3
Wire Diameter Range0.125 in to 0.215 in
Wire Gauge Range12 AWG - 8 AWG
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Printable SidesSingle-Side Printable
RoHS Compliance StatusCompliant with Directive 2011/65/EU and 2015/863
Core Diameter1.625 in
Diameter as Supplied0.25 in
Height0.439 in
Recovered Diameter0.125 in
Recovered Wall Thickness0.025 in
Roll Length175 ft
Sleeve Size0.25 in Dia x 175 ft L
ECCN (Export Commodity Control Number)EAR99
HTS Code (Harmonized Tariff Schedule)8443.99.2550
Country of OriginUnited States of America
Print TechnologyThermal Transfer
Label PropertiesHeat Shrink
Material PropertiesHeat-shrinkable
ColorWhite
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-resistant, Self-Extinguishing, Smear-resistant
Material NumberB-7642
FinishMatte
Shrink Ratio2:1
Service Temperature Range °F-40 °F - 248 °F
Recommended RibbonR6406
Printer CompatibilityBBP72, i7100, THT 3
Wire Diameter Range0.125 in to 0.215 in
Wire Gauge Range12 AWG - 8 AWG
Note

Note: Please read description carefully. Do not base your order on the picture presented.
