| Dimensions | 12.5 in H x 9.5 in W x 17.2 in D |
| Height | 12.5 in |
| Width | 9.5 in |
| Depth | 17.2 in |
| Core Diameter | 3 in |
| Display Size | 2.0 x 3.6 in |
| Display Size (Imperial) | 2.0 x 3.6 in |
| Weight | 13.6 lb |

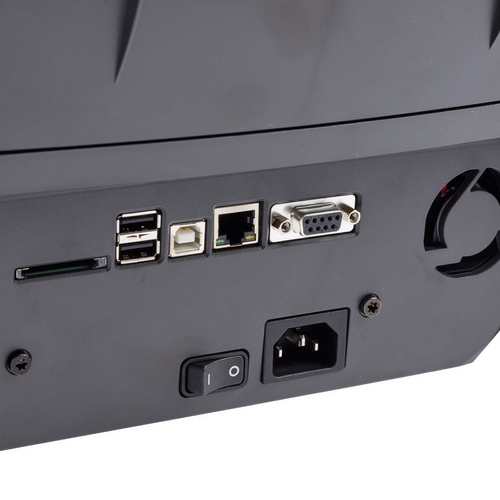

| Connectivity Options | Bluetooth, Ethernet, Serial RS232, USB 2.0, USB Host |
| Cut Options Available | Upgrade to Auto Cutter (through Brady tech Repair) |
| Cutter Type | None |
| Display Type | Color LCD Touch Screen |
| Keyboard Type | None |
| Media Sensor Type | Black Mark, Gap Sensor, Notch, Ribbon End |
| Memory | 256 MB RAM |
| Mode of Operation | PC Connect |
| Stand Alone Printing | Stand-Alone & PC Connect |
| Plug Type | IEC Type B |
| Power Supply Voltage | 100 - 240 V at 50 - 60 Hz |
| Auto Shut-Off / Power Conserve | Yes |
| User Interface Type | PC, Touch Screen |
| Operating System | Windows® 10, Windows® 7, Windows® 8, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016 |
| Ribbon Ink Wind Direction | Side In/Side Out |
| Supply Remaining Gauge | Yes |
| Automatic Label Set Up | Yes |
| Barcode Capability | Yes |
| Barcode Symbologies - 2D | Aztec, Codablock F, Data Matrix, GS1 Data Bar, Micro PDF 417, PDF 417, QR Code, RSS 14, RSS 14 Truncated, UPS MaxiCode |
| Barcode Symbologies - Linear | Codabar;Code 128 Subsets A,B,C;Code 39;Code 93;EAN 8,13;EAN/UPC Appendix 2;EAN/UPC Extension 5;FIM;HIBC;Interleaved 2 of 5 Code 39;JAN 8,13;MSI;Plessey;PostNet;RSS 14;UPC A,E,E0 |
| Calibration Required? | Yes |
| Color Printing Capability | Single Color |
| Font Styles | Bitmap Default Font - 12x12 dots, Bitmap Default Font - 16x16 dots, Bitmap Default Font - 16x32 dots, Monospace 821, OCR-A Size I, OCR-B, Swiss 721, Swiss 721 Bold |
| Maximum Labels per Day | 5000 |
| Maximum Print Speed | 5.9 in/s |
| Print Resolution | 600 dpi |
| Print Technology | Direct Thermal, Thermal Transfer |
| Media Sensor Adjustment | Yes |
| Compatible Media | 2HT-, 3HT-, 3PS-, PS-, PSL-, THT-, THTCLP-, THTEP-, THTFP-, THTFT-, XTHT- |
| Label Material Types | Nylon, Paper, Polyester, Polyethylene, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Polyvinylidene, Vinyl |
| Continuous & Die-Cut Materials Supported | Continuous and Die-cut |
| Custom Media Parts Available | Yes |
| Maximum Label/Tape Width | 4.16 in |
| Maximum Print Width | 4.16 in |
| Maximum Printed Label Length | 6.6 ft |
| Minimum Label Length | 0.20 in |
| Minimum Liner Width | 0.36 in |
| Maximum Liner Width | 4.4 in |
| Software Compatibility | Brady Workstation, Windows based driver for 3rd party software use |
