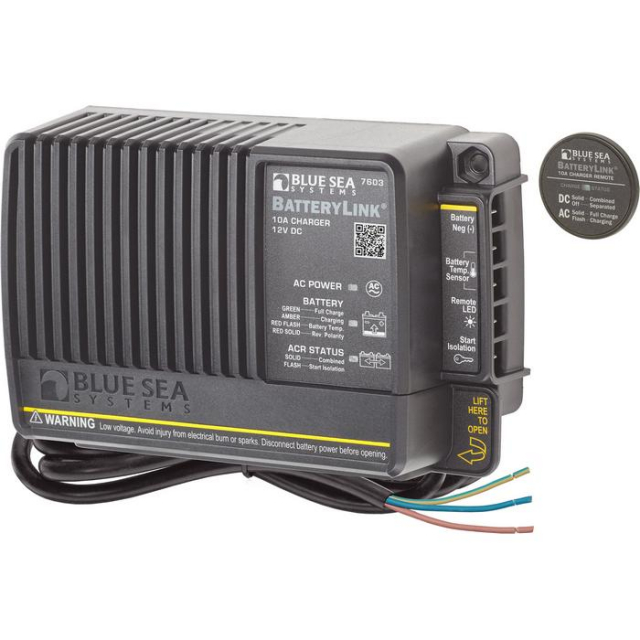

Blue Sea Systems, 7603-BSS, BatteryLink Charger, 10A, Bare Wire European

Charge two batteries at or away from the dock with a10A multistage battery charger and integrated65A Automatic Charging Relay (ACR)

Features with all optional accessories:

AC charging at the dock: Use AC shore power to charge twoisolated battery banks with the 3 Stage 10 Amp battery charger
DC charging away from the dock: Share the DC power from thealternator with both the Start and the Auxiliary battery throughthe integrated 65A ACR
Battery Temperature Compensation prolongs battery life
Start isolation protects sensitive electronics from voltagesags and spikes
Includes LED remote indicator for charge status at the helm
Snap-on insulating cover
One-piece stainless flange nuts ensure safe and secure connections

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Total Output Current	10A
Nominal Voltage	12V DC
Number of Outputs	1 negative 2 positive
Terminal Stud Torque	60 in-lb (6.78 Nm)
Continuous Rating	65A
Intermittent Rating	115A
Universal AC Input Voltage	90-265V AC
AC Input Frequency	50/60Hz
Typical Float Voltage	13.5V DC
Battery Types	AGM Flooded TPPL
Cable Size to Meet Ratings	10 AWG Negative Cable 6 AWG Positive Cable
Maximum Battery CCA	850CCA
Maximum Cable Size	1/0 AWG (50mm)
Operating Current	10mA 60mA
Plug Style	Bare wire
Recommended Battery Bank Sizes	120Ah Maximum 60Ah Minimum
Terminal Stud Size	1/4"-20
Combine 30 sec	13.5V
Combine 2 Min	13V
Open 10 sec	12.35V
Open 30 sec	12.75V
Weight	4.00lb (1.81 kg)

Total Output Current	10A
Nominal Voltage	12V DC
Number of Outputs	1 negative 2 positive
Terminal Stud Torque	60 in-lb (6.78 Nm)
Continuous Rating	65A
Intermittent Rating	115A
Universal AC Input Voltage	90-265V AC
AC Input Frequency	50/60Hz
Typical Float Voltage	13.5V DC
Battery Types	AGM Flooded TPPL
Cable Size to Meet Ratings	10 AWG Negative Cable 6 AWG Positive Cable
Maximum Battery CCA	850CCA
Maximum Cable Size	1/0 AWG (50mm)
Operating Current	10mA 60mA
Plug Style	Bare wire
Recommended Battery Bank Sizes	120Ah Maximum 60Ah Minimum
Terminal Stud Size	1/4"-20
Combine 30 sec	13.5V
Combine 2 Min	13V
Open 10 sec	12.35V
Open 30 sec	12.75V
Weight	4.00lb (1.81 kg)
