Atago 3930 DD-7 Digital Differential Refractometer

  • Brand Atago
  • Part # 3930
  • Model # DD-7
  • Condition
    Brand New
  • Not for Export

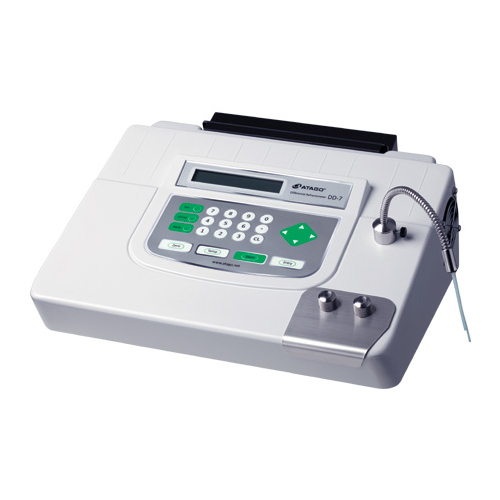

Atago 3930
Additional image #1 for Atago 3930

Availability
Contact Us
Export
Not for Export
Check Availability
Quantity
  • This item is available for purchasing throughout request. Please use the "Add to Quote" button.
Share:

This model measures solutions of low concentration up to 2% at an extremely high accuracy level of ±0.005%. It is recommended for such samples as unsweetened tea and surfactants.

2 types of solutions - distilled water as the standard solution and the sample liquid to be measured - are injected into the instrument with syringes.

By using a standard solution other than distilled water, solutions of higher concentration can also be measured.

See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Resources
Reviews
ModelDD-7
Cat.No.3930
ScaleBrix
Method of measurementDifferential optical refraction
Measurement Range0.000 to 2.000% in concentration (for sucrose solution)
It is possible to measure samples with refractive index up to 1.50 (nD) by reference solutuion. (Samples must be low in viscosity.)
ResolutionBrix : 0.001%
Measurement AccuracyBrix : ±0.005 (In the case of measurement of sucrose solution (0 to 2%) at 30°C)
Temperature control rangeBetween 5°C and 10°C above ambient temperature; up to 40°C
*Heating only (no cooling)
Ambient Temperature10 to 30°C
Power SupplyAC100V to 240V, 50/60Hz
Dimensions & Weight36x35x14cm, 6.2kg
(Main Unit only)
Power consumption50VA
Output terminalsDigital Printer DP-63 or DP-AD (Optional)
RS-232C
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
ModelDD-7
Cat.No.3930
ScaleBrix
Method of measurementDifferential optical refraction
Measurement Range0.000 to 2.000% in concentration (for sucrose solution)
It is possible to measure samples with refractive index up to 1.50 (nD) by reference solutuion. (Samples must be low in viscosity.)
ResolutionBrix : 0.001%
Measurement AccuracyBrix : ±0.005 (In the case of measurement of sucrose solution (0 to 2%) at 30°C)
Temperature control rangeBetween 5°C and 10°C above ambient temperature; up to 40°C
*Heating only (no cooling)
Ambient Temperature10 to 30°C
Power SupplyAC100V to 240V, 50/60Hz
Dimensions & Weight36x35x14cm, 6.2kg
(Main Unit only)
Power consumption50VA
Output terminalsDigital Printer DP-63 or DP-AD (Optional)
RS-232C
