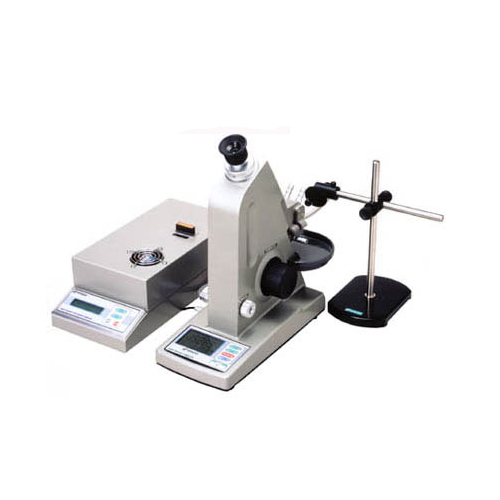

Atago, 1414 DR-M4 Multi-Wavelength Abbe Refractometer, 450 to 1100nm Wavelength

Brand:
Atago
Part #
1414
Model #
DR-M4
UPC #
731236900382
Condition:
Brand New
Factory packed
Factory warranty
Manufacturer List Price: $17,100.00
Availability:
Contact Us
Unit of Measure:
Each
Package Quantity:
1 pc
Notifications
  • Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
All sales are final
All sales are final
  • These are made-to-order items.
  • This product is not eligible for return or exchange unless defective.
  • The average lead-time is 1 or 2 weeks.
Product Details
Description
Specification
Optional Accessories
Description

Description

Refractive index or Abbe number ( νd or νe ) can be measured at different wavelengths ranging from 450 to 1,100nm ( For measurement at wavelengths ranging from 681 to 1,100nm, the Optional Near Infrared Ray Viewer ( RE-9119 ) is required. )

The DR-M4 displays measurement result of refractive index or Abbe number digitally on the LCD.

Measurement can be achieved by matching the boundary line with the intersection point of the cross hairs.

Specification

Specification

Measurement Range Refractive index 1.5219 to 1.9220 ( Wavelength 450nm )
Refractive index 1.4700 to 1.8700 ( Wavelength 589nm )
Refractive index 1.4545 to 1.8544 ( Wavelength 680nm )
Refractive index 1.4260 to 1.8259 ( Wavelength 1,100nm )
Minimum Indication Refractive index : 0.0001
Abbe number : 0.1		 Measurement Accuracy Refractive index : ±0.0002
( With the attached test piece at 500 to 650nm )
Wavelength Range From 450 to 1100nm ( with interference filters )
( For measurement at wavelengths ranging from 681 to 1100nm, the Near Infrared Ray Viewer ( Optional ) is required )
Measurement
Temperature Range		 5 to 50°C
Power Consumption 160VA Power Supply AC100 to 240V 50/60Hz
Optional Accessories

Optional Accessories

Notes

** This item is BRAND NEW – not refurbished.
