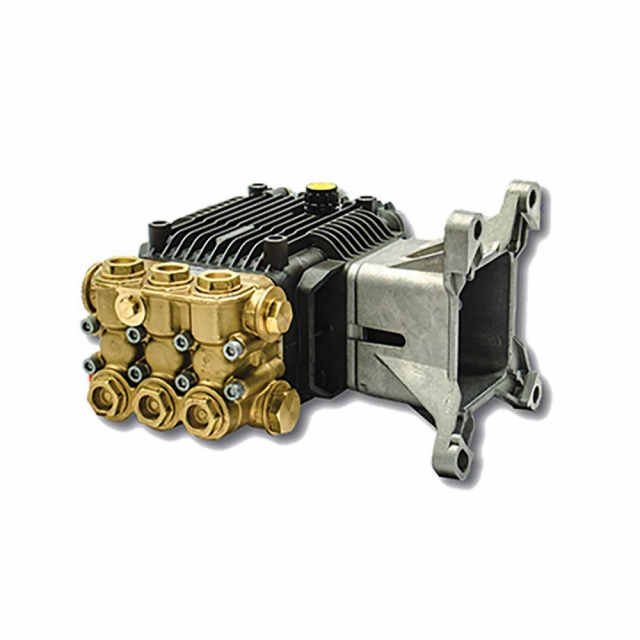

AR North America, XMV3G30D-F24, 3 Max GPM Direct Drive Gas Plumber Pump, 3000 Max PSI
140° F - Max Water Temp 1/2" F - Inlet Thread 3/8"F - Discharge Thread 14.5 oz - Oil Capacity
Annovi Reverberi AR XMV3G30D-F24 horizontal gas engine triplex plunger pump is rated up to 3 GPM at max 3000 PSI at 3400 RPM using a 1/2 ”F inlet and 3/8"F discharge thread. D version 3/4” with a gas engine flange.
Plunger Pumps are designed for a wide variety of high pressure washing applications. They are constructed with die-cast bodies and feature a brass head. Internal components include special thick solid ceramic plungers for long life and durability. Precision cast cooling fins are anodized for maximum heat dissipation. Oversized needle bearings on the drive side, and ball on the non-drive side together with the precision supports assure positive alignment and centering in relation to the crankcase. Valve cages of special designed Ultra-Form provide positive seating and extended life. Ball bearings on both sides of solid shaft drive pumps. One-piece connecting rods are special alloy aluminum, oversized for strength and load disbursement.
