AR North America SRMW22G26-EZ SRMW Triplex Residential Plunger Pump

SRMW22G26-EZ, Triplex Residential Plunger

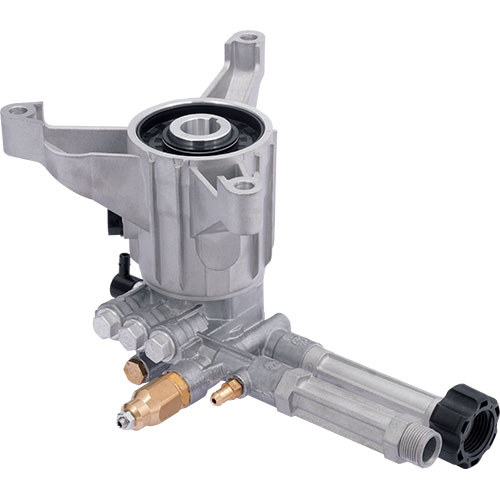

Annovi Reverberi offers the SRMW22G26-EZ 2,600 PSI triplex plunger pump. This pump is for vertical gas engine driven units. Please reference the pictures below showing the mounting difference between the two models. Specifications: 2.2 GPM at 2,600 PSI and spins at 3,400 RPM. This pump mounts directly on to the engine shaft by using a keyed hollow shaft connection system. The mounting flange provides a convenient connection to most 7/8" diameter shaft vertical gas engines in 4 - 7 HP (reference the cc to HP chart) and fits most OEM carts. The pump includes a built-in pressure control valve, downstream chemical injection system, EZ start valve and thermal relief valve.

Features:

• The "S" version has upgraded grade valves
• Comes with Easy Start Valve (EZ)
• Thermal relief valve included
• 3-piston alternating volumetric pumps for use on cleaning units
• Can be directly coupled to various types of motors
• Different delivery connections available
• Optional detergent suction system
• Integral regulating valve
• Pump body in die-cast aluminum alloy
• Pistons driven by swash plate mechanism
• Two bearing systems, to support the pump shaft and pistons
• Pistons in hardened and tempered steel
• Pump head in pressed brass
• Double gasket sealing system
• Intake valves fitted above the pistons for greater efficiency
