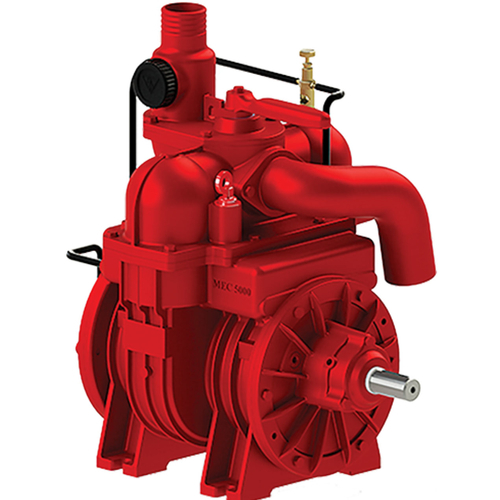

AR North America MEC2000SX Battioni Pagani HP Rotary Vane Vacuum Pump

  • Brand AR North America
  • Part # MEC2000SX
  • Model # Battioni Pagani
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

AR North America, MEC2000SX, Battioni Pagani 13,4 Max Vacuum HP Rotary Vane Vacuum Pump

600 / 1400 Max RPM 36.26 Max Absolute (relative) Pressure

The Battioni Pagani series of industrial rotary vane vacuum pumps have been used for many years to empty cesspools, transport sewage and in agricultural fertilizing irrigation operations. They have an excellent reliability.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Reviews
Weight165
Max RPM600 / 1400
Pump TypeP LA SX UL D51 EM
Pump Types DescriptionP-Driven through Pulley or Belts / LA-Auto Lubrication / SX-Counter Clock Wise Rotation / UL-2 Port 2 Revolving Elbows
Max Absolute (reletive) Pressure36.26
Geometric Capacity GPM726.47
Vacuum without depression Valve Fitted PSI-13.12
Power absorption Max Vacuum HP13.4
Power absorption 36.6 PSI absolute 1400 rpm HP7.4
L/min.2750
Cubic feet/min. CFM97
Product Details
Weight165
Max RPM600 / 1400
Pump TypeP LA SX UL D51 EM
Pump Types DescriptionP-Driven through Pulley or Belts / LA-Auto Lubrication / SX-Counter Clock Wise Rotation / UL-2 Port 2 Revolving Elbows
Max Absolute (reletive) Pressure36.26
Geometric Capacity GPM726.47
Vacuum without depression Valve Fitted PSI-13.12
Power absorption Max Vacuum HP13.4
Power absorption 36.6 PSI absolute 1400 rpm HP7.4
L/min.2750
Cubic feet/min. CFM97
