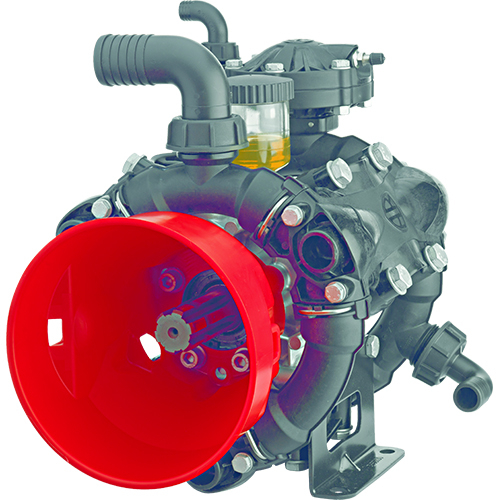

35,1 Max GPM Diaphragm Pump, 220 Max PSI

Features

Alternating volumetric pumps with three semi-hydraulic diaphragms with air chamber for use in agriculture in low pressure systems for spraying open field crops with fertilisers, pesticides or weed killers
Parts in contact with pumped liquids in reinforced nylon and stainless steel
Diaphragms in NBR, H.P.D.S., Desmopan or Viton
Seals in NBR or Viton. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking
Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm
New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions
Spherical sector profile valves for lower flow resistance and improved volumetric efficiency
Rugged feet secured to pump casing
GEOMET coated or stainless steel metal fasteners.

140°F - Max Water Temp 35 mm - Suction 1” - Outlet

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.

Technical Details

Note: Please read description carefully. Do not base your order on the picture presented.
