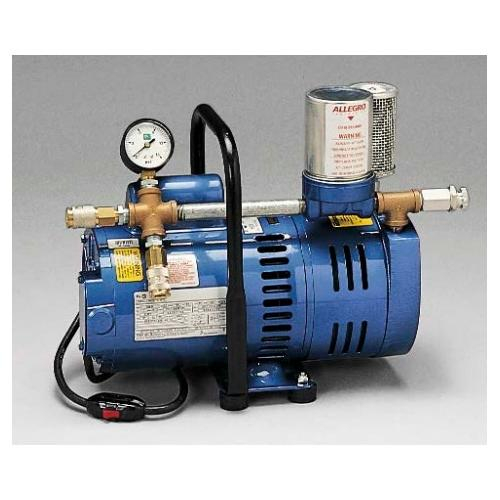

9821, A-750 Ambient Air Pump (3/4 HP Motor)

General Description:

Portable & lightweight air source for one hood user, or up to two full or half face respirator users. Solid performance in applications such as painting, cleaning, sanding or chemical handling operations.

Construction:

Rigid metal base and housing
Brass and galvanized steel plumbing
Quick-connect OBAC fitting
Adjustable brass pressure relief valve
Steel handle
Powder coated blue

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Resources

Reviews

Pump

Type

Oil-less, rotary vane

Vanes

Carbon construction (4ea/ replaceable) (2" (5.0cm) X 1.5" (3.8cm) X 0.219" (.55cm))

Inlet Filter

50 Micron felt material with metal grid inlet filter housing

Exhaust Filter

0.3 Micron HEPA

Pressure Gage

2" (5.08cm) face, steel housing (0-15 psi (0-1.03 bar))

Pressure

2-12 psi (.14-.83 bar) working (15 psi (1.03 bar) max)

Performance

0-10 CFM (0-16.99 m3/hr) at 60 Hz (adjusted via pressure relief valve)
0-8 CFM (0-13.59 m3/hr) at 50 Hz (adjusted via pressure relief valve)

Airline length

100 feet (30.4m) maximum from pump to respirator (sold separately)

Noise level

At pump: 90 dB
At 6 feet (1.82m): 74 dB
At 10 feet (3.04m): 72 dB

Temperature Range

32°F - 104°F (0°C - 40°C)

Motor

3/4 HP

Certifications

UL Recognized

Volts

115V/230V AC, Single Phase

RPM

1725 RPM at 60Hz / 1425 RPM at 50Hz

Current Draw

115V 9.05A / 230V 4.6A at 60Hz

Cord

6' (1.83m) 16/3 AWG SJTW with integrated ON/OFF switch

Plug

Integrated NEMA 5-15

Product Details

Pump

Type

Oil-less, rotary vane

Vanes

Carbon construction (4ea/ replaceable) (2" (5.0cm) X 1.5" (3.8cm) X 0.219" (.55cm))

Inlet Filter

50 Micron felt material with metal grid inlet filter housing

Exhaust Filter

0.3 Micron HEPA

Pressure Gage

2" (5.08cm) face, steel housing (0-15 psi (0-1.03 bar))

Pressure

2-12 psi (.14-.83 bar) working (15 psi (1.03 bar) max)

Performance

0-10 CFM (0-16.99 m3/hr) at 60 Hz (adjusted via pressure relief valve)
0-8 CFM (0-13.59 m3/hr) at 50 Hz (adjusted via pressure relief valve)

Airline length

100 feet (30.4m) maximum from pump to respirator (sold separately)

Noise level

At pump: 90 dB
At 6 feet (1.82m): 74 dB
At 10 feet (3.04m): 72 dB

Temperature Range

32°F - 104°F (0°C - 40°C)

Motor

3/4 HP

Certifications

UL Recognized

Volts

115V/230V AC, Single Phase

RPM

1725 RPM at 60Hz / 1425 RPM at 50Hz

Current Draw

115V 9.05A / 230V 4.6A at 60Hz

Cord

6' (1.83m) 16/3 AWG SJTW with integrated ON/OFF switch

Plug

Integrated NEMA 5-15
