AEMC 2153.62 DL914 4-Channel Data Logger

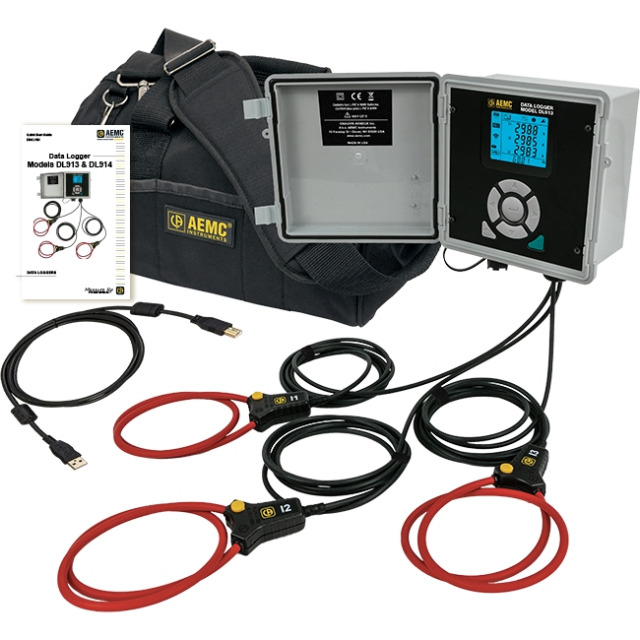

2153.62 Includes Only:

• Small classic tool bag
• 10 ft USB Type A to Type B cable
• (4) stainless steel mounting brackets with (4) Phillips M4-0.7 x 8 mm stainless steel machine screws
• USB power adapter
• Quick start guide
• USB thumb drive with DataView® software and user manual

Features:

• Simple-to-use, 3 (DL913) and 4 (DL914) channel AC current data loggers
• 4th channel for neutral current monitoring (Model DL914)
• Includes 3 (DL913) or 4 (DL914) integral 24-inch flexible current sensors
• Current measurements from 500 mA up to 3600 A
• LCD displays real-time measurements and parameters such as memory, power, and communication status
• Front panel navigation of configuration options and measurement screens
• Built-in web server for remote monitoring
• Extended recording mode for increased battery life
• Battery and/or USB-powered options
• Frequency measurements
• Wi-Fi and USB communications
• Waterproof IP67 rated (USB cap on, cover closed)

Applications:

• Single/Split-phase and 3- or 4-phase load monitoring
• Neutral and ground current monitoring
• Intermittent problem detection
• Machine load monitoring / Load profiling
• Fault current detection

The Data Logger Model DL913 is a 3-channel AC current data logger with three integral flexible current sensors. Each sensor is 24 inches long and capable of wrapping around a 7.64-inch conductor. The DL913 has two measurement ranges of up to 300 and 3000 Amps. Both the data logger housing and the current sensors are water resistant and rated to IP 67. A selection of data storage modes, as well as data sampling rates, is user programmable through the DataView^® software included with the unit. However, most of the setup can also be done from the keypad and LCD display on the instrument. The measurements are stored in internal nonvolatile memory. Data storage rates as fast as once per second. Communication is done through a USB port or wireless Wi-Fi and it is powered by two rechargeable NiMH batteries. The instrument can also be externally powered through the USB plug.
