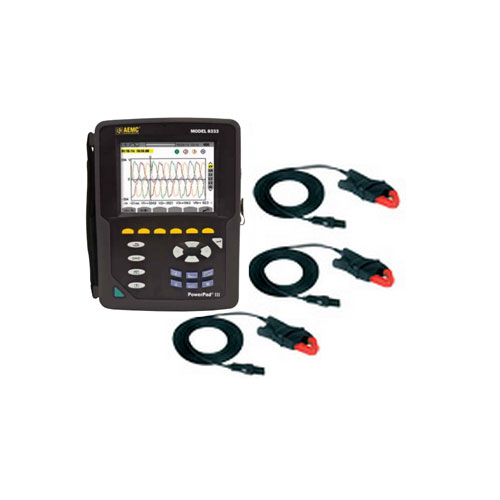

AEMC, 2136.12, 3 Inputs Three-Phase Power Quality Analyzer with 3 MN193-BK Probes

The PowerPad^®III Model 8333 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on single- or three-phase networks. Three current and four voltage input terminals are provided are provided. It is IEC 61000-4-30 Class B and safety rated to 600V CAT IV.

The Model 8333 has memory available for storing trend data, alarms, transients, and snapshot data. The user can store up to 12 screen snapshots, up to 51 captured transients that contain four cycles for each active input, and 4,000 alarm events from up to 10 different parameters. Trend data can also be recorded for days, weeks or even months.

Includes Only:

3 x MN193-BK Probe
4 x 10 ft voltage lead, black
4 x Alligator clip, black
12 x Color-coded input ID marker
NiMH battery
110/240V power adapter with US power cord
Carrying bag
Soft carrying pouch
USB stick supplied with product user manual and DataView^® software

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Notifications

Notifications Item is non-returnable unless defective.
Please review our Return Policy.

Notifications

Notifications This product will be drop-shipped directly from the manufacturer. We will provide you with the manufacturer's lead time once advised.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Optional Accessories

Resources

Reviews

Inputs	3 Voltage / 3 Current
Sample Rate	256 per Cycle	12.8kHz at 50Hz		15.36kHz at 60Hz
Specification	Range	Measurement Range		Resolution	Accuracy (Typical)
Volt
Vrms (AC + DC)	1000V P to N2000V P to P	2 to 1000V		0.1V	±0.5% Rdg + 200mV
Vpk	1414V	2 to 1000V		0.1V	±3% Rdg + 2V
Vrms Half Cycle	1000V P to N2000V P to P	2 to 1000V		0.1V	±0.8% Rdg + 1V
Amps (accuracy excluding clamp accuracy)
Amps (AC + DC)	SR193 & MR193MN193 5AMN193 100A	1 to 1000A5mA to 5A100mA to 100A		0.1A1mA10mA	±0.5% Rdg + 200mA±0.5% Rdg + 2mA±0.5% Rdg + 20mA
AmpFlex & MiniFlex	Range 100A Range 6500ARange 10kA	100mA to 100A10 to 6500A10A to 10kA		1mA0.1A & 1A1A	±0.5% Rdg + 30mA±0.5% Rdg + 3A±0.5% Rdg + 3A
Apk	SR193 & MR193MN193 5AMN193 100A	1 to 1,414A5mA to 7.017A100mA to 141.4A		0.1A1mA10mA	±1% Rdg + 2A±1% Rdg + 20mA±1% Rdg + 200mA
ApkAmpFlex & MiniFlex	Range 100A Range 6500ARange 10kA	100mA to 100A10 to 6500A10A to 10kA		1A0.1A & 1A1A	±3% Rdg + 600mA±3% Rdg + 5A±3% Rdg + 5A
A Half Cycle	SR193 &MR193MN193 5AMN93 100A	1 to 1200A5mA to 6A100mA to 120A		0.1A1mA10mA	±1% Rdg + 1A±1% Rdg + 10mA±1% Rdg + 100mA
Frequency	40 to 70Hz			0.01	±0.01Hz
Power
Watts (VA, var) P-Q-S	Probes: AmpFlex, MiniFlex	10mW to 10MW10mW to 10MW		4 digits min4 digits min	±1% Rdg±1.5% Rdg
Power Factor (Cos Φ/DPF)		-1 to 1		0.001	±1° for Φ,+5 cts for cos Φ
Energy
kWh (kVAh, kvarh) P-Q-S	1mWh to 9,999,999MWh (MVAh, Mvarh)				±1% Rdg
Harmonics	DC, 1 to 50
Volts & Amp %	frAbsolute VAbsolute ATHD	0.0 to 1500%0.0 to 100%0.0 to 1000V0.0 to 1000A0.0 to 999.9%		0.1%0.1%0.1V0.1A0.1%	±2.5% Rdg + 5cts±2.5% Rdg + 5cts±2.5% Rdg + 1V±2% Rdg + 1A±2.5% Rdg + 5cts
Phase Angle		-179° to +180°		1°	±1.5° +1°x(n/12.5)
Also display Energy loss, Flicker, Plt (2H), Pst (10min), Unbalance V% & A%
General Features
Programmable Alarm	Up to 10 types; 4,000 recorded max.
Transient capture	Up to 51
Snapshot	Up to 12 (screen BMP + all channels data)
Interface	Isolated USB, SD card slot accessible under instrument battery for direct transfer to PC, Dataview software for real time data, configuration and reporting included
Memory	SD card (SDHC compliant, not formatted) standard, for trend Data, Internal memory for In-Rush, transients and alarms
Display	Color TFT 320 x 240 (1/4 OFT) with graphic representation of system parameters and measurements
Real-Time Clock	Time and date stamp for Trend mode, Transient display, System Monitor and event capture
Power Supply	Rechargeable 9.6V NiMH battery pack, External charger
Charging Time	90 to 264VAC (50/60Hz)		6 hours approx.
Battery Life	>13hrs when display ON, 25hrs when recording with display OFF
Dimensions (L x W x H)	9.8 x 7.9 x 2.6” (250 x 200 x 67mm)
Weight	4.3lbs. (1.95kg)
Altitude Operating	2000m (6560ft)
Operating Temperature	32° to 108.5°F (0° to 42.5°C) ≤85% RH
Storage Temperature	-4° to 158°F (-20° to 70°C) ≤75% RH without battery
IP Rating	IP53 per IEC 60529
Safety	IEC/EN 61010-1 (1000V CAT III-600V CAT IV), IEC 1326-1

Notes
