This product is discontinued, no longer available. Replacement part numbers:

The SR601 is a general purpose 1000AAC current probe designed for use with DMMs, loggers and other instruments that have a current input. It has a 1000:1 ratio and output of 1mA per amp measured in the jaw. The SR601 has jack output termination that accept 4mm banana plugs. Features diode protection for open secondary (output). The rounded jaw design on this probe makes it well-suited for power applications where high accuracy and low phase shift is important.

Features:

Measurement range of 100mA to 1200AAC
Large jaw opening accommodates conductors up to two 500MCM
Improved ergonomic design and easy operation
Conforms to EN 61010, 600V CAT III
Low phase shift for power measurement
Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters

Applications:

Power quality measuring
Large industrial loads
Measuring around cable bundles
Power load monitoring
Waveform analysis

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Resources

Reviews

Maximum Conductor Size	2.05" (52mm)
Current Range	1000Arms AC
Measurement Range	0.1 to 1200A
Output	Two standard banana jack (4mm)
Transformation Ratio	1000:1
Output Signal	1mA/AAC (1A @ 1000A)
Accuracy 50/60Hz	0.5% @ 1000A
Frequency Range	30Hz to 50KHz
Phase Shift at 50Hz	0.5° @ 1000A
Open Secondary Voltage	Limited to <25V
Load Impedance	1Ω, 5Ω max with derating
Overload	1200A for 40 mn ON then 20 mn OFF

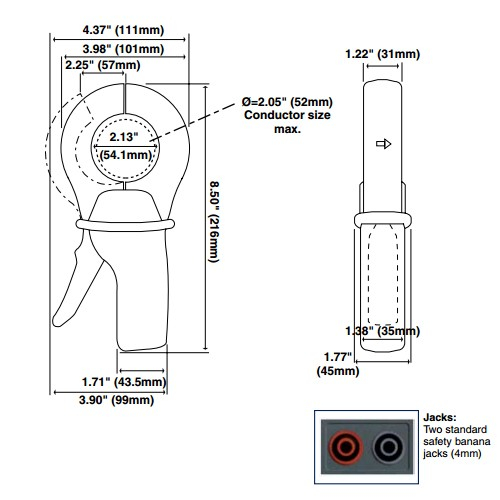

Dimensions (H x W x D)	4.37 x 8.50 x 1.77” (111 x 216 x 45 mm)
Weight	1.21 lbs (550g)
Operating Temperature	14° to +122°F (-10° to +50°C)
Storage Temperature	-4° to +158°F (-20° to +70°C)
Operating Humidity	90% RH
Pollution Degree	2
Ingress Protection (Ip)	IP40
EMC	EN 61326-1
Safety Compliance	EN/IEC 61010-1 600V CAT III,EN/IEC 61010-032
