AEMC 2110.71 MN114 10A AC Current Probe with 5 ft. Lead

  • Brand AEMC
  • Part # 2110.71
  • Model # MN114
Availability
Discontinued
Share:

Replacement

This product is discontinued, no longer available. Replacement part numbers:

The MN114 is a general purpose mini probe which offers 1mA to 10AAC, continuous cycle current range. The output signal is 100mVAC/AAC (1V at 10A). It was designed to optimize measurements on 5A signals. The output termination is a 5ft lead with safety 4mm banana plug.

Features:

  • Small, compact and very tough AC probes
  • "Clothes pin" shape makes them ideal (or use in tight areas, such as breaker panels, controller panels, or outlets
  • Measurements from 1mA to 10Aac
  • Excellent companion to all DMMs. Permits very low AC current measurements
See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Resources
Reviews
Maximum Clamping Diameter0.47" (12mm)
Current Range10Arms AC
Measurement Range1mA to 10AAC
Output Signal100mVAC / AAC (1V @ 10A)
Transformation RatioN/A
Output5 ft (1.5m) lead with 4mm safety banana plug
Accuracy 50/60Hz2% R ± 2mA (typical)
Frequency Range30Hz to 5kHz
Phase Shift at 50/60Hz<8°
Open Secondary VoltageN/A
Load Impedance100kΩ min

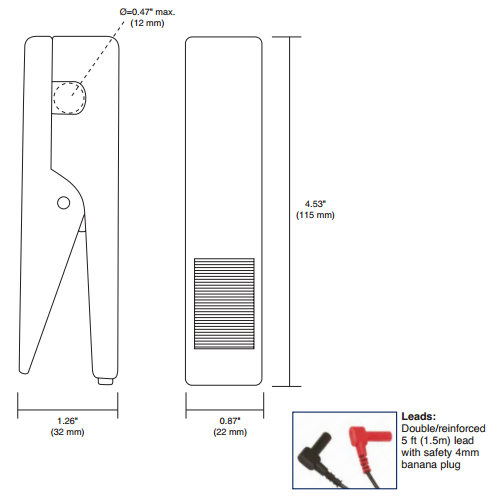

Dimensions (HxWxD)1.26 x 4.5 x 0.87” (32 x 115 x 22mm)
Weight6 oz (160g)
Operating Temperature-13° to +122°F (-25° to +55°C)
Storage Temperature-40° to +176°F (-40° to +80°C)
RatingUL 94 V0
Safety250V working voltage, 30V max common mode between output and ground, 3kV 50/60Hz dielectric for 1mm
Product Details
Maximum Clamping Diameter0.47" (12mm)
Current Range10Arms AC
Measurement Range1mA to 10AAC
Output Signal100mVAC / AAC (1V @ 10A)
Transformation RatioN/A
Output5 ft (1.5m) lead with 4mm safety banana plug
Accuracy 50/60Hz2% R ± 2mA (typical)
Frequency Range30Hz to 5kHz
Phase Shift at 50/60Hz<8°
Open Secondary VoltageN/A
Load Impedance100kΩ min
Dimensions (HxWxD)1.26 x 4.5 x 0.87” (32 x 115 x 22mm)
Weight6 oz (160g)
Operating Temperature-13° to +122°F (-25° to +55°C)
Storage Temperature-40° to +176°F (-40° to +80°C)
RatingUL 94 V0
Safety250V working voltage, 30V max common mode between output and ground, 3kV 50/60Hz dielectric for 1mm
