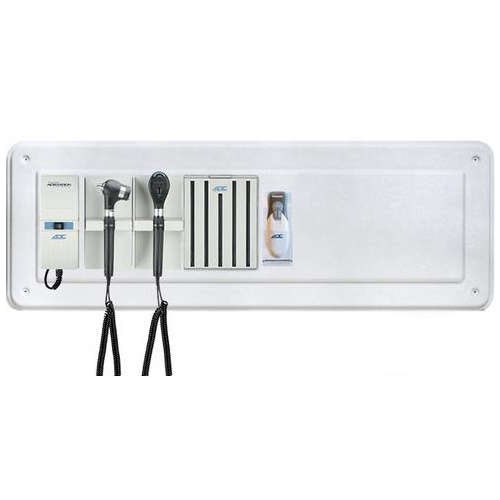

5680X-349W Includes Only:
- 5660T Wall Transformer
- 5660E Extension
- 5422X 3.5V PMV Otoscope Head, Halogen/Xenon Lamping
- 5440X Coax Ophthalmoscope, Halogen/Xenon Lamping
- 5630 Specula Dispenser
- Wall Board
- 429 Non-Contact Thermometer
5660T Adstation Wall Transformer Features & 5660E Adstation Wall Extension Module with all optional accessories:
- Magnetic switch activates power when handle is removed from cradle, automatically powers off when handle is replaced
- Handle is CNC machined from solid brass and chrome plated in black with a ribbed surface for a sure grip
- Adtronic electronic rheostatic light intensity control provides infinite continuous control
- Adtronic auto-off feature after two minutes provides additional safety if instrument is mis-cradled
- Bayonet instrument mount is compatible with all major brands of 3.5V instrument heads
- Base unit contains power switch and one handle
- Up to three single-handle extension units can be added
- Easy to install with included bracket or may be mounted to our wallboard systems
- UL approved
5422X PMV Otoscope Head Features with all optional accessories:
- Significantly improved view of the auditory canal and tympanic membrane
- Fiber-optic light transmission for an unobstructed view
- Reflection-optimized, high-performance glass optics
- Adjustable focal depth
- Suitable for throat illumination and pneumatic otoscopy (insufflator sold separately)
- Compatible with Welch Allyn specula
- Anti-theft locking feature is standard
- Made in Germany, inspected and packaged in the U.S.A.
ADC’s new Diagnostix PMV Otoscope uses advanced optical technology to create a panoramic, magnified view that features twice the field of view and 66% greater magnification (11 mm field of view, 5X magnification) compared to our standard otoscope. The Diagnostix PMV can be used with ADC’s 5460, 5560, and 5660 handles (sold separatly). The universal bayonet mount is also compatible with other brands of 3.5V handles.
5440 Diagnostix Coax Ophthalmoscope Head Features with all optional accessories:
- High-performance aspherical condenser lens reduces corneal reflection
- Further reduction provided by utilizing distinct parallel observational and illuminating light beams (Gullstrand’s Equation)
- Ergonomic design and integral thumb rest improves stability and allows one-finger control of all functions
- Synthetic rubber brow rest facilitates use with practitioner eyeglasses
- Dust proof
- Magnified, illuminated aperture viewing window
- Universal bayonet mount for compatibility with other brands of 3.5V power supply handles
- Anti-theft locking feature is standard
- 29 viewing lenses from -35 to + 40 (PLUS 1-10, 12, 15, 20, 40; Minus 1-10, 15, 20, 25, 30, 35)
- 24 aperture/filter combinations for improved versatility
- 6 apertures include:
- Slit – used to help determine levels of tumors and lesions
- Fixation – has graduated crosshairs for measuring eccentric fixation or locating lesions
- Large – standard aperture for a dilated pupil and general examination of the eye
- Small – provides excellent view of fundus through an undilated pupil
- Micro spot – allows quick entry into small, undilated pupils
- Half moon – provides a combination of depth perception and field of view
- 3 filters (plus neutral) include:
- Red free – excludes red rays from examination field for easy identification of veins, arteries, and nerve fibers
- Cobalt – used with fluorescent dye to view small lesions, abrasions, and foreign objects on the cornea
- Polarizing – virtually eliminates corneal reflection
Specula Dispenser
The Adstation specula dispenser is a hygienic and practical solution with space for five tubes of specula. The filling level of each specula tube is visible, and tubes are easy to refill. The dispenser holds up to five sizes and is compatible with Welch Allyn specula.
Adtemp 429 Non-Contact Thermometer Features with all optional accessories:
- Infrared sensor simplifies temperature measurement-ideal for screening
- Measures in about 1 second without patient contact eliminating the concern of cross contamination or costly probe covers
- Measurement feedback system signals proper operating distance for accuracy
- Measures at a distance of 4-6cm (1.5"-2.5") from patient's forehead
- Dual mode - body and object
- Large backlit LCD display is easy to read
- Wide Temp Range
- 30 reading memory
- Fahrenheit-Celsius switchable
- Auto-off function after 30 seconds conserves battery life
- Audible beep when measurement is complete, Night mode mutes volume
- Compact ergonomic design 5" x 2.06" x 1.75" ( 52.4mm x 44.5mm x 129.9mm), weighs approximately 3oz (87g) with batteries
- Optional cradle available for wall mounting
- Uses 2 "AAA" batteries (included)
