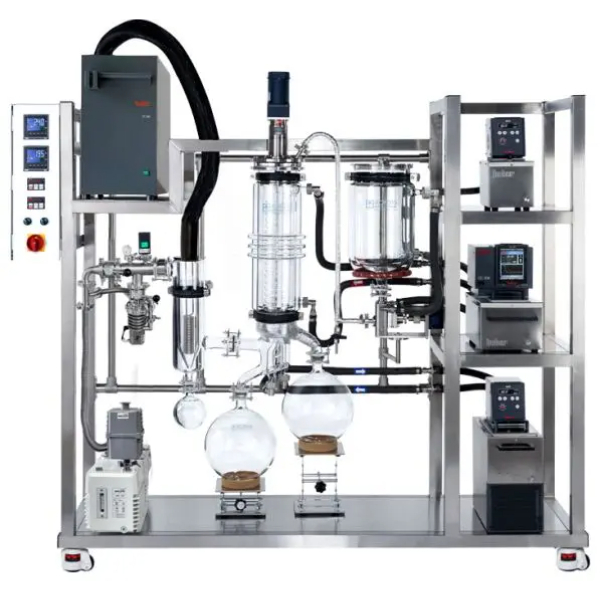

| Throughput | 2L to 5L per hour (base on processes and material fed) |
Main Evaporator
| - Evaporating area: approximately 2,500 cm2
- Material: borosilicate glass
- Glass jacket volume: approx. 3L
- Heated circulator: 3kW heater, 300°C maximum operating temperature
|
Main Condenser
| - Condensing area: approximately 4,000 cm2
- Material: borosilicate glass
- Style: coil
- Glass jacket volume: approx. 1.5L
- Cooling/heated circulator: 2kW heater, -25°C to 200°C operating temperature
|
Wiping System
| - Style: roller or blade
- Roller/blade material: PTFE
- Driving motor: speed-adjustable with magnetic coupling
- Motor controller: DELTA
|
| Cold Trap | - Material: borosilicate glass with polyethylene lid
- Depth: 17"
- Quantity: one
- Receiving flask volume: 1L
- Immersion cooler: PolyScience -80°C IP80 or Huber -100°C TC100
|
| Feeding System | - Gear pump x 1
- Speed: 20L/hour max. (2.4 mL/turn, 135 turn/minute), adjustable
- Material: stainless steel body with Viton gaskets
- Recommended circulating thermal fluid temperature: 80°C to 120°C
- Flask: glass, 10L, jacketed, refillable during operation, with lid
- Flask jacket volume: approx. 4L
- Heating controller: OMRON
- Heated circulator: 2kW heater, 200°C maximum operating temperature
- Construction: jacketed, heated, insulated stainless steel tubing
|
| Distillate Discharge | - Receiving flask volume: 10L, glass
- Drain passage: non-heated
- Sealing gasket: Viton
|
| Residue Discharge | - Receiving flask volume: 10L, glass
- Drain passage: heated and insulated
- Heating: heated tape with insulation
- Heating controller: Omron
- Sealing gasket: Viton
- Recommended circulating thermal fluid temperature: 80°C to 120°C
|
| Vacuum System | - Vacuum gauge: Agilent gauge with LCD display for high vacuum application
- Vacuum pump: Welch CVRpro 30 with oil mist filter
- Diffusion pump: Agilent AX-65 (do NOT fill more than 30mL diffusion pump oil at a time)
|
| Sealing gasket | All food grade Viton |
Electrical Control Cabinet
| - Wiper motor controller x 1
- Gear pump controller x 1
- Feeding tubing heater controller x 1
- Residue discharge heater controller x 1
- Main power switch x 1
- Vacuum pump switch x 1
- Diffusion pump switch x 1
|
| Main Mounting Frame | Heavy duty stainless steel, mounted on four swivel casters with leveling feet |
| Main Power | 230V +/-5V, 1~phase 60Hz |
| Unit dimensions ,weight | 86x25x78", 1150lbs |
| Shipping dimensions ,weight | - 1 Crate: 97x31x81", 1197 lbs
- 1 pallet: 40x48x42", 450 lbs
|
| Compliance | ETL tested to UL and CSA standards |
| Evaporator configuration | Wiper |
