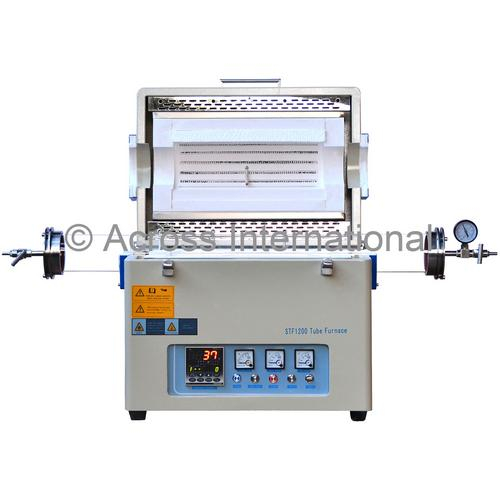

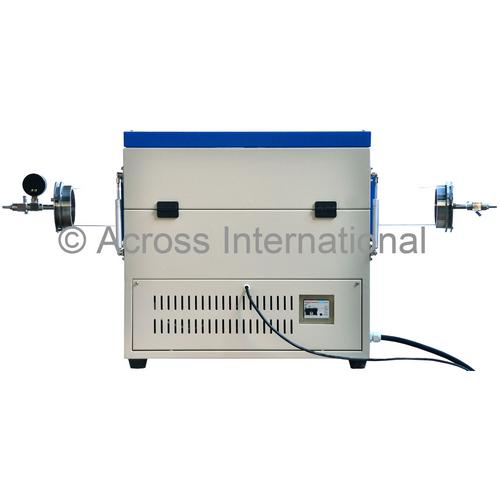

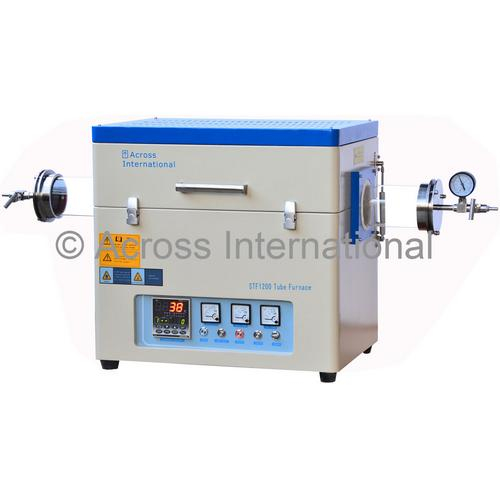

Across STF1200.100 100mm OD x 1000mm 1-Zone 1200 deg C Split Tube Open Both Ends Furnace

1-Zone 1200°C Split Tube Furnace with Kanthal® (Sweden) Elementsents, 100 mm OD, 1000 mm Open both ends tube

STF1200.100 Includes Only:

• STF1200 split tube furnace (1 pc)
• Quartz tube 1000mm length: 60-120mm OD: 2 pcs, 150mm/200mm OD: 1 pc
• Stainless steel vacuum sealing flanges w/ pressure gauge (1 set)
• Analog flow meter (1 pc)
• Stainless steel hook (1 pc)
• Alumina thermal block (for 120mm OD and down
• Thermal gloves (1 pair))
• Spare fuse (2 pcs)
• USB/RS485 computer interface kit (1 set)
• L6-30P 250 volt twist-lock plug (Pre-installed)
• Furnace and Shimaden controller manual (2 pcs)

Features with all optional accessories:

• Compact, portable and lightweight design.
• Split furnace chamber for fast and easy tube access.
• Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
• Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Built-in computer interface.
• Long life type K thermocouple.

Safety:

• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
