Across, SE26, Ai SolventVap 2.6-Gallon/10L Rotary Evaporator W/ Motorized Lift
SE26 Includes Only:
- 2.6-gallon rotary evaporator and water bath (1 set)
- Vapor filtering bottle (1 pc)
- Vertical main and auxiliary condensers, glass (2 pcs)
- 10L round shaped, big neck evaporating flask, glass (1 pc)
- 5L receiving flask with detachable drain port (1 pc)
- Three-way tee vapor buffering flask, glass (1 pc)
- Glass vapor duct with seal (pre-installed) (1 set)
- PTFE vacuum sealing kit (pre-installed) (2 pcs)
- Receiving flask glass vacuum port with PTFE open/close valve (2 sets)
- Glass material feeding port with PTFE open/close valve, PTFE extension hose (1 set)
- Stainless steel pole and mechanical vacuum gauge (2 pcs)
- Rubber-wrapped condenser support and bracket (2 pcs)
- Rubber-wrapped receiving flask support (1 pc)
- Flask quick clamp and centering ring (7 sets)
- GL18 connector (5 sets)
- Evaporating flask cap spanner, allen key and screws (1 set)

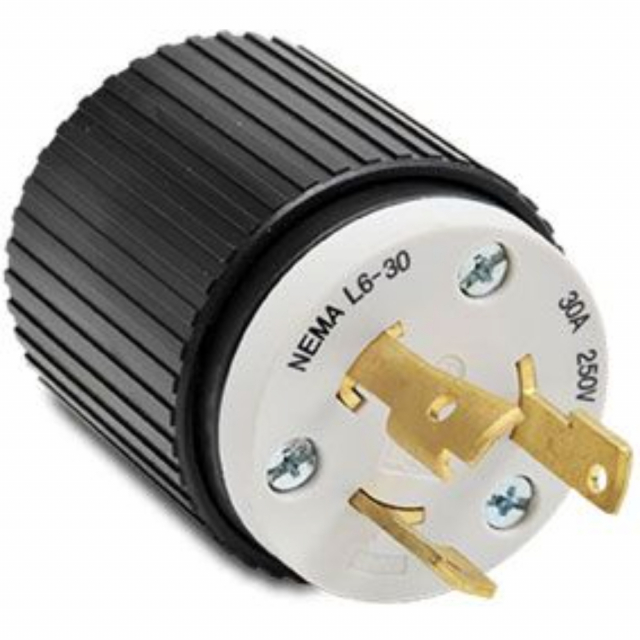

- 30A 250V power plug (Installed on rotovap)
- Ai plexiglass bath cover for 10L SolventVap (1 pc)
- Users manual (1 pc)
Its optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently. Thats why SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.
Rotary evaporator features a specially designed motor and worm gear, which provides constant rotation at speeds from 10 to 130 rpm. As the flask containing the solvent is rotated, it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation, which is caused by the gentle heating from the water bath. The rotating system is fitted with a special seal that allows the apparatus to be placed under vacuum, effectively reducing the boiling point of the solvents and removing the vapor phase, making the process much more efficient. Each unit is also equipped with an easy-to-use vacuum release and a continuous feed system, which allows solvent to be constantly drawn into the rotating flask without needing to stop the operation.
Digital water bath operates from ambient temperature to 99C (210F) with PID temperature control stepping at 0.1C increments. Heating coils are located directly inside the pan for the most efficient heating possible. A built-in overheat protector will shut down power, should the controller fail.
Rotary evaporators with vertical glass condenser are great for distillation of solvents with higher boiling points.
Features:
- Water bath cover enhances safety by protecting evaporating flask and the material inside; it gives you uniform temperature inside evaporation flask as well as energy saving by reducing heat loss. It also creates a better lab environment by preventing heat and humidity from escaping.
- Stronger swivel casters can be securely adjusted to accommodate uneven floor.
- Solvent-resistant PTFE and Viton gaskets, ensuring long time operation.
- Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
- Downward-condensing vacuum connection design ensures safe vacuum operation.
- Motorized water bath lifting for precise control.
- Easy, straight-forward visual operation with digital speed and temperature display.
- PID temperature controller ensures accurate temperature control is maintained.
