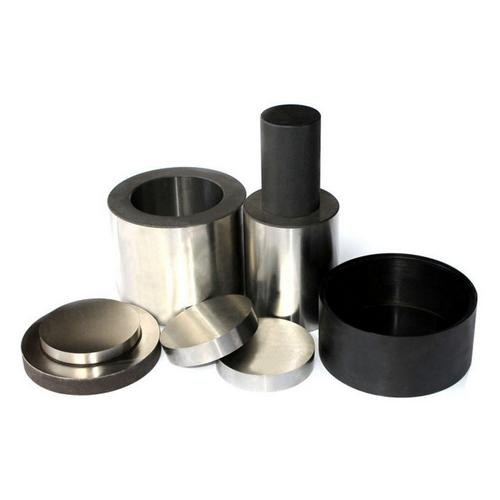

100mm Diameter ID Dry Pressing Die Set

A set of 100mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 100mm diameter cylinder-shape pellets.

Includes:

Two 100mm diameter cylinder-shape core dies made of highly polished hardened steel.
One steel sleeve.
One steel support plate.
One push rod with detachable handle.
One pellet ejector.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Maximum Pressure	250 metric tons
Rockwell Hardness	Rc 62
Diameter (ID)	100 mm
Height	300 mm (assembled with handle and without sample)
Sleeve Height	120 mm
Sleeve Diameter (OD)	150 mm
Weight	62 lb
Tolerance	0.01-0.02 mm (10-20 micron)
Die Material	Cr12 hardened carbon mold steel
Max sample fill height	Not to exceed 1/3 of the sleeve height

Maximum Pressure	250 metric tons
Rockwell Hardness	Rc 62
Diameter (ID)	100 mm
Height	300 mm (assembled with handle and without sample)
Sleeve Height	120 mm
Sleeve Diameter (OD)	150 mm
Weight	62 lb
Tolerance	0.01-0.02 mm (10-20 micron)
Die Material	Cr12 hardened carbon mold steel
Max sample fill height	Not to exceed 1/3 of the sleeve height

Note: Please read description carefully. Do not base your order on the picture presented.
