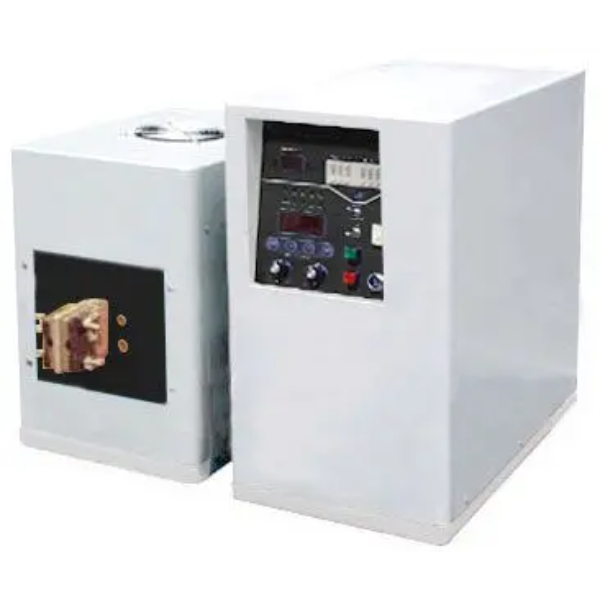

Across IHG30AB 30KW Hi-Frequency Split Induction Heater 50-200KHz

IHG30AB Includes Only:

• IHG30AB induction heater - 1 set
• Remote switch (7 ft) - 1 pc
• Power cables - 2 pcs
• Power connector - 1 pc
• Data cables - 3 pcs
• Stainless steel hose clamp - 1 set
• Fuse - 1 set
• Operation manual - 1 pc

IHG series 100 kHz to 1100 kHz high frequency induction heaters are among the latest products developed by Across International. They can quickly heat most metals that other frequencies can not heat efficiently, like aluminum and metal powders. And uniquely they can heat parts from a distance. These heaters are the ideal tools for fine steel wires (such as those used in dentistry) annealing, small precision shaft quenching, hard alloy saw blade brazing and metal powders melting.

Features

• Overvoltage protection: machine shuts down when input voltage is over 495V. Overvoltage light will turn on and buzzer will sound continuously. Alarm and light shut off automatically when voltage goes below 495V.
• Overheat protection: if sensor detects heat radiatortemperature is over 55C, machine will shut down, overheat light will turn on and buzzer will sound continuously. Increase water pressure or lower water temperature until alarm goes off itself.
• Overcurrent/malfunction protections: machine will shut down, indicator light turned on and buzzer sounds continuously if one of these situations occurs:
  • One of the machine parts becomes overheated
  • Interfering signal detected
  • Short circuit between work pieces and induction coils
  • Machine malfunctions
  • Induction coils touching each other
  • Input voltage is too low
• Low water pressure protection: if water pressure goes below 29 PSI, machine will shut down, water protection light will turn on and buzzer will sound continuously.
• Specially designed for heating and welding thin metal parts, blades and melting of small quantity of metallic materials, ultra fast.
• Ease of use: just plug in the power and connect the water cooling system, simple instruction allows you to use the heater in 15 minutes.
• Precise control with digital output, frequency and current displays.
• Remote foot switch for safer operation.
• Dual automatic and manual modes.
