Buy Across D35.110, D35 Ai DeepFreeze 35 Cu Ft Ultra-Low Upright Freezer

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

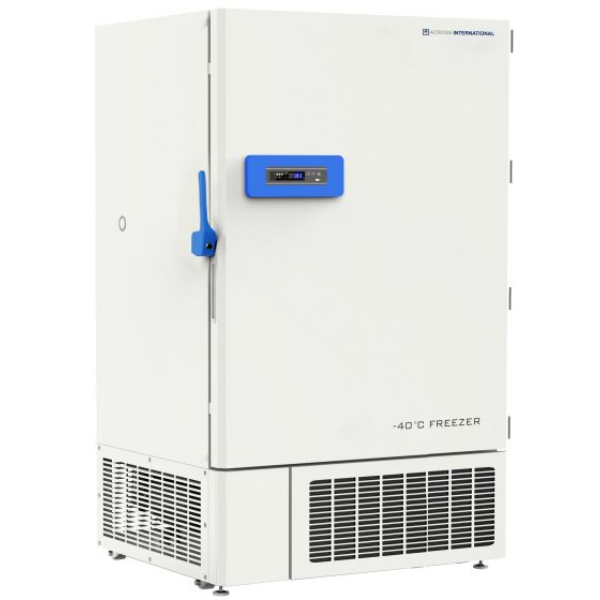

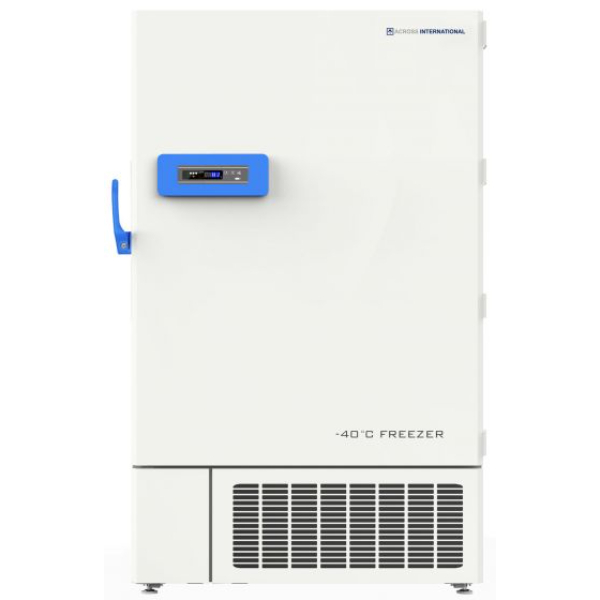

Across, D35.110, Ai DeepFreeze 35 Cu Ft -40°C Upright Freezer 110V

D35.110 Includes Only:

Ai D35 -40°C upright freezer - 1 pc
Shelf - 3 pcs
Ice scraper - 1 pc
Additional access port inside cap - 2 pcs
Wrench - 1 pc
Door key - 2 pcs
USB drive with data reading program - 1 pc
Users manual - 1 pc

The Ai DeepFreeze series -40C 35 Cu Ft freezers is perfect for extra-large storage of sample and products. Unique single-compressor design offers low power consumption, exceptionally low noise, and ease of maintenance.

Features:

Great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs, and serum
All stainless steel interior for clean operation, durability, and ease of maintenance
Lock-able door, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
Stainless steel interior for clean operation, durability, and ease of maintenance
Dual silicon sealing gaskets for ultra airtight operation
72-hour battery backup for controller
Built-in remote alarm and RS-485 port
USB interface for data export and storage
Extremely quiet and reliable
Environmentally friendly refrigerant
Use only RoSH compliant non-toxic components and materials
Built-in swivel casters with adjustable support that will secure the unit on uneven floor

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Electrical requirements

110V (±10%) 60Hz 1-Phase, 1,375 watts 12.5A

Performance

Temperature range: -20°C to -40°C
Time to reach -40°C: 6 hours (110V)

Compressor

Make: SECOP
Number of compressor: two
Style: parallel
Refrigerant: R507

Chamber

Dimensions: 40 x 27 x 54"
Material: 304 stainless steel
Capacity: 35 Cu Ft

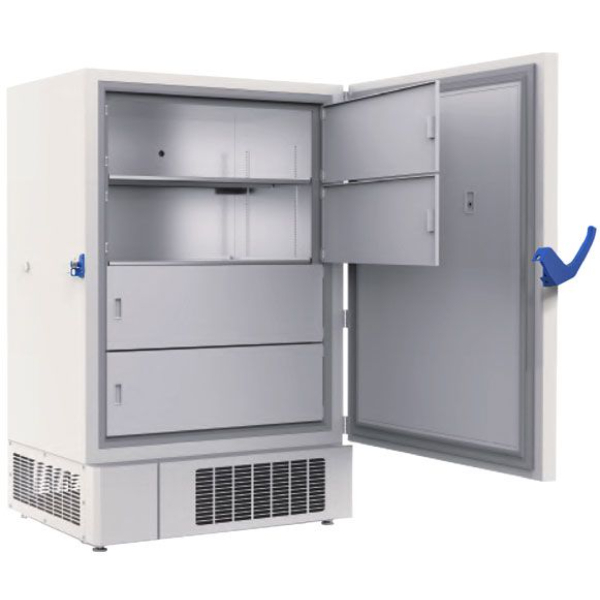

Shelf

Come with unit: three adjustable shelves (4 compartments)
Material: 304 stainless steel
Capacity: 110 Lbs on three shelves, evenly distributed 450 Lbs on the base of the chamber, evenly distributed
Dimensions: 40 x 27 inches (compatible with G35)
Additional shelf unit price: $250

Door and gasket

Inner door: four, each with one sealing gasket
External door: one with dual sealing gasket, lock-able

Working environment

Temperature: 16°C to 32°C
Humidity: <80% Rh
Altitude: < 2000 m / 6561 Ft
Stable, well-ventilated platform with no excessive dust
Keep freezer at least 12 inches from any walls or ceiling
Use dedicated power, do not share outlet
Extension power cable should be less than 10 feet is required
Freezer and power outlet should be grounded properly
Avoid direct sunlight, water spill and do NOT use freezer outdoor
Clean condenser fins and remove frost inside chamber at least once a month
Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.

Battery backup system

72 hours (for controller display and alarms only)

Access port

Two, one on the side and one in the back, one inch diameter

Communication

Remote alarm 4-20mA transmitter, USB, RS-485

Built-in swivel casters

Four, with two leveling feet

Noise level

52 dBA

Unit/shipping weight & dimensions

735 Lbs / 964 Lbs
54 x 41.5 x 78.5" / 59 x 45 x 86" (WxDxH)

Safety

Compressor over-temp protection
Compressor power surge delay protection
Power failure protection
Low battery, door open, filter clogging, system failure alarms
External door with lock

Product Details

Electrical requirements

110V (±10%) 60Hz 1-Phase, 1,375 watts 12.5A

Performance

Temperature range: -20°C to -40°C
Time to reach -40°C: 6 hours (110V)

Compressor

Make: SECOP
Number of compressor: two
Style: parallel
Refrigerant: R507

Chamber

Dimensions: 40 x 27 x 54"
Material: 304 stainless steel
Capacity: 35 Cu Ft

Shelf

Come with unit: three adjustable shelves (4 compartments)
Material: 304 stainless steel
Capacity: 110 Lbs on three shelves, evenly distributed 450 Lbs on the base of the chamber, evenly distributed
Dimensions: 40 x 27 inches (compatible with G35)
Additional shelf unit price: $250

Door and gasket

Inner door: four, each with one sealing gasket
External door: one with dual sealing gasket, lock-able

Working environment

Temperature: 16°C to 32°C
Humidity: <80% Rh
Altitude: < 2000 m / 6561 Ft
Stable, well-ventilated platform with no excessive dust
Keep freezer at least 12 inches from any walls or ceiling
Use dedicated power, do not share outlet
Extension power cable should be less than 10 feet is required
Freezer and power outlet should be grounded properly
Avoid direct sunlight, water spill and do NOT use freezer outdoor
Clean condenser fins and remove frost inside chamber at least once a month
Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.

Battery backup system

72 hours (for controller display and alarms only)

Access port

Two, one on the side and one in the back, one inch diameter

Communication

Remote alarm 4-20mA transmitter, USB, RS-485

Built-in swivel casters

Four, with two leveling feet

Noise level

52 dBA

Unit/shipping weight & dimensions

735 Lbs / 964 Lbs
54 x 41.5 x 78.5" / 59 x 45 x 86" (WxDxH)

Safety

Compressor over-temp protection
Compressor power surge delay protection
Power failure protection
Low battery, door open, filter clogging, system failure alarms
External door with lock

Note

Note: Please read description carefully. Do not base your order on the picture presented.
