Across CF1400.12.8.8 CF1400 40-Segment Muffle Furnace

Across, CF1400.12.8.8, CF1400 40-Segment Muffle Furnace w/ PC Interface, 12" x 8" x 8", without ETL Tested to UL/CSA

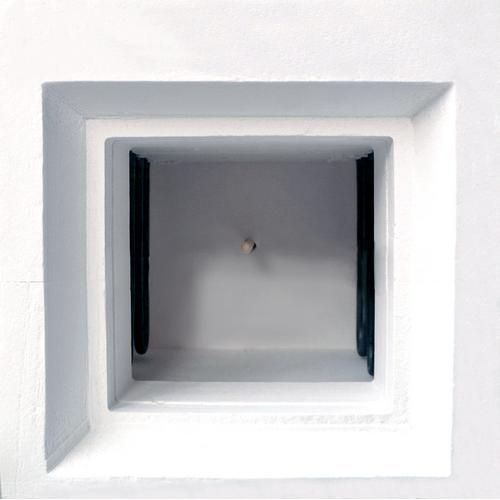

CF1400 series muffle furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and silicon carbide (SiC) heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface. Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.

Features:

• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Built-in computer interface.
• Long life type S thermocouple.
• CE compliant Safety.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
