ACR 35-0050 CT-453 AC Current Transducer, 1000A

Range: 1.5 to 1000 A
  • Brand ACR
  • Part # 35-0050
  • Model # CT-453
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Notify Me if The Price Drops
Share:

Options and Related Products

Range:
Range: 1.5 to 1000 A

ACR, 35-0050, CT-453 AC Current Transducer, 1000A 50/60Hz

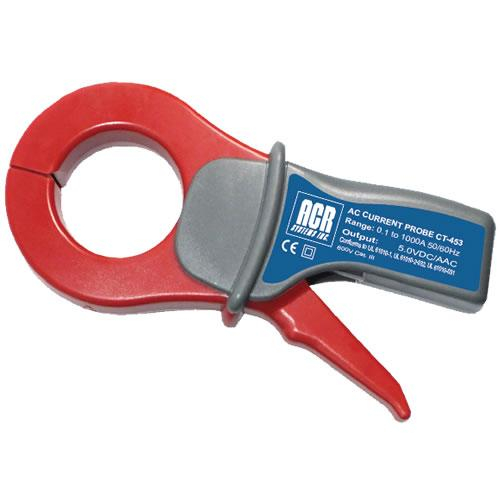

To easily log AC Current, simply clamp the ACR CT-453 Current Probe around the electric lead. No wiring required, permitting safe and reliable operation. For SmartReader Plus loggers only.

Report incorrect product information
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
All sales are final
All sales are final
  • These are made-to-order items.
  • This product is not eligible for return or exchange unless defective.
  • The average lead-time is 1 or 2 weeks.

Technical Details

Reviews
Rated Input:1.5 to 1000A AC 50/60Hz
Secondary Output:5.0 VDC rated current Passive circuitry will be used for AC to DC conversion
Accuracy:± 2.5% from 2% to 5% of rated current ± 1% from 5% to 100% of rated current
Response Time:10mV DC/A AC (5V DC 500 AAC)
Ripple:≤ 1%
Burden Resistance:≥ 100 kOhms
Operating Temperature:-10° C to 60° C (14°F to 140°F)
Operating Voltage:600V
Safety:600V CAT III
Maximum Cable Diameter:52mm (2.05 in.)
Output Cable:1.5m (60 in.) PVC insulated, reinforced coaxial cable
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Rated Input:1.5 to 1000A AC 50/60Hz
Secondary Output:5.0 VDC rated current Passive circuitry will be used for AC to DC conversion
Accuracy:± 2.5% from 2% to 5% of rated current ± 1% from 5% to 100% of rated current
Response Time:10mV DC/A AC (5V DC 500 AAC)
Ripple:≤ 1%
Burden Resistance:≥ 100 kOhms
Operating Temperature:-10° C to 60° C (14°F to 140°F)
Operating Voltage:600V
Safety:600V CAT III
Maximum Cable Diameter:52mm (2.05 in.)
Output Cable:1.5m (60 in.) PVC insulated, reinforced coaxial cable
