Buy ACR 35-0049, CT-353 AC Current Transducer

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Range:: Range: 2 to 500 A

ACR, 35-0049, CT-353 AC Current Transducer, 500A 50/60Hz

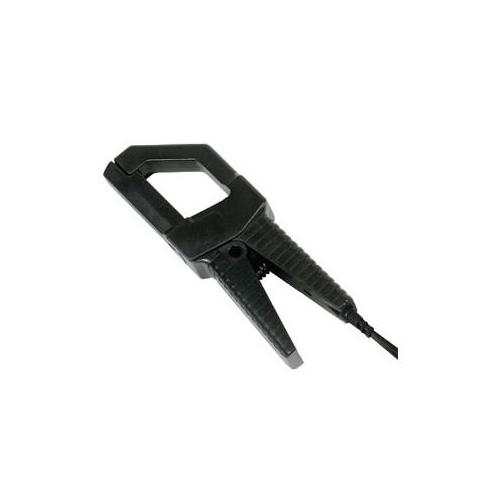

The CT-353 probe is built for ruggedness, versatility and ease of use. It is designed with a unique hook-shaped jaw that enables the user to “pry" into or “hook" onto cables (will accept 2 x 500kcmil) or even smaller bus bars. For SmartReader Plus loggers only.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews


Operating Range:	2 to 500A
Measurement Range:	5 to 500A
Transformation Ratio:	DC Voltage output
Output Signal:	10mV DC/A AC (5V DC 500 AAC)
Overload:	700 A for 10 min ON, 30 min OFF
Frequency Range:	48 to 1000Hz (error: add 2% to the ref.)
Working Voltage:	600Vrms
Common Mode Voltage:	600Vrms
Operating Temperature:	-5° to 122°F (-15° to 50°C)
Storage Temperature:	-40° to 185°F (-40° to 85°C)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details


Operating Range:	2 to 500A
Measurement Range:	5 to 500A
Transformation Ratio:	DC Voltage output
Output Signal:	10mV DC/A AC (5V DC 500 AAC)
Overload:	700 A for 10 min ON, 30 min OFF
Frequency Range:	48 to 1000Hz (error: add 2% to the ref.)
Working Voltage:	600Vrms
Common Mode Voltage:	600Vrms
Operating Temperature:	-5° to 122°F (-15° to 50°C)
Storage Temperature:	-40° to 185°F (-40° to 85°C)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
