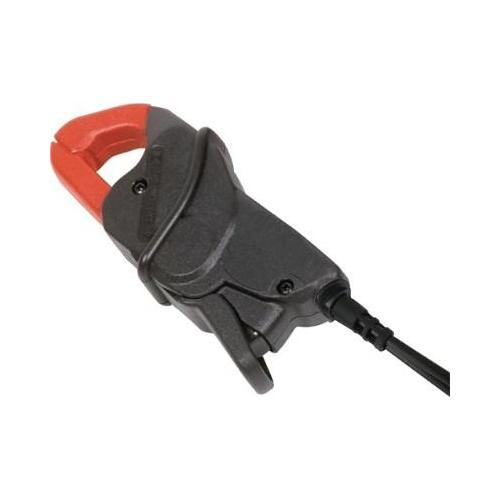

ACR, 35-0048, CT-253 AC Current Transducer C-Clamp, 250 A 50/60HZ

To easily log AC Current, simply clamp the ACR CT-253 Current Probe around the electric lead. No wiring required, permitting safe and reliable operation. For SmartRreader Plus loggers only.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Electrical Specifications:

Operating Range: 0.5 to 250A
Measurement Range: 5 to 240A
Transformation Ratio: DC Voltage output
Output Signal: 20mV DC/A AC (4.8 VDC 240AAC)
Frequency Range: 40Hz to 10kHz
Nominal Operating Conditions: 200A permanently to 1kHz: Derating above 3kHz: 200 A x (1/0.333F), F in kHz
Crest Factor: 3 200Arms with an error (due to CF) of 4%
Working Voltage: 600Vrms
Common Mode Voltage: 30Vrms
Influence of Adjacent Conductor: <15mA/A at 50Hz Influence of DC on AC signal: DC current <20A, <5%
Influence of Conductor Position in Jaw: 0.5% of mV output 50/60Hz
Influence of Frequency: 40 Hz to 1 kHz: 5% of mV output 1 kHz to 10 kHz: 12% of mV output
Influence of Load: < 3% of mA output from 40Hz to 1kHz < 12% of mA output from 1kHz to 10kHz

Environmental Specifications:

Operating Temperature: 14° to 131°F (-10° to +55°C)
Storage Temperature: -40° to 158°F (-40° to +70°C)
Altitude: Non-operating: 0 to 12,000 m Operating: 0 to 2000 m
Operating Relative Humidity: 10 to 35°C 85% RH (without roll-off above 35°C)
Influence of Temperature: <= 150 ppm/K or 0.15% of mV output per 10K
Influence of Humidity (10 to 90% RH): <= 0.2% of mV output per 10 K, 18 to 28°C
