ACR, 01-0328 IAQ-102 System CO2 monitor

  • Brand # ACR
  • Part # 01-0328
  • Condition
    Brand New
Availability:
Typically In Stock
Notify Me if The Price Drops
All sales are final
All sales are final
  • These are made-to-order items.
  • This product is not eligible for return or exchange unless defective.
  • The average lead-time is 1 or 2 weeks.
Report incorrect product information
Ask a question
Product Details
Reviews
Product Details

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

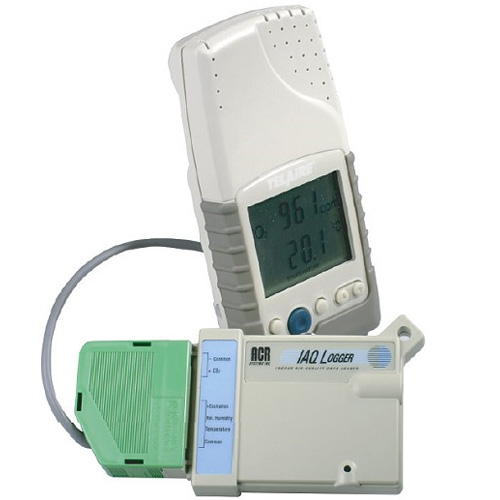

The IAQ Logger, when combined with the GE Telaire 7001 Handheld CO2 Monitor, records the three leading indicators of indoor air quality: (1) temperature, (2) relative humidity, and (3) carbon dioxide. This IAQ solution is ideal for those applications requiring long-term, close monitoring and recording. Quickly and easily verify the temperature and CO2 on the Telaire's large, easy-to-read display.

Temperature, Humidity and C02

Data Logging Solution

  • Monitor and record indoor air quality (Temperature, Relative Humidity, Carbon Dioxide)
  • Real time display
  • Option to monitor resistance, switch status or 2nd temperature and RH measurement

Specification

No. of Channels

Five

  • One for Ambient temperature
  • One for Relative humidity
  • One for Carbon dioxide
  • Two for temperature and/or RH (with ACR thermistor probes)
Clock Accuracy± 2 seconds per day
Memory Size32 KB (32,767 readings)
Sampling Methods

1. Continuous (First-in, First-out)

2. Stop when full (Fill then stop)

Sampling RatesUser selectable rates from 8 seconds to once every 5 days
Resolution8-bit
Power SourceBattery3.6 volt Lithium,
Power Consumptions5 years under normal use (factory replaceable)
Battery Life10 Years under normal use
General SpecificationsSize107 mm x 74 mm x 22 mm (4.2" x 2.9" x 0.9")
Case MaterialNoryl plastic
Weight110g (3.75oz)
MountingMagnetic backing and locking eyelet
PC Requirements
Processor/Operating SystemIBM PC or 100% compatible running Windows 3.1, ’95, ’98, 2000, ME, NET, XP
Available Hard drive spaceAt Least 2MB
MemoryAt Least 2MB
Communication Ports1 Free Serial Port
Software
Basic Software: TrendReader 2 System Requirements (Required for Standard use)
ProcessorPentium II-350MHz or Faster
Operating SystemWindows 2000 SP4, XP SP2
Available Hard drive spaceAt Least 250 MB of Hard disk space
Memory128 mb of Ram (256 MB Recommended)
Communication PortsUSB or Serial Port, dependant on interface cable
Internet BrowserInternet Explorer 6 or higher
Screen resolution1024 x 768 or higher
Additional EquipmentMouse or other pointing device

Telaire 7001 Specifications

Size107 mm x 80 mm x 40 mm (6.7" x 3.1" x 1.6")
Case MaterialABS plastic
MountingPull-out Stand
Operating Limits0 to 50°C (32 to 122°F) and 0 to 95% RH (non-condensing)
Power Supply6 VDC from external AC/DC adapter (included) or
4 AA batteries (not included)
