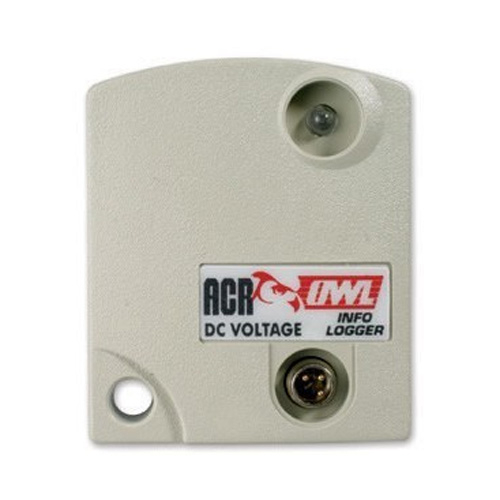

ACR 01-0253 Owl 400, Single-Channel DC Voltage Data Logger

  • Brand ACR
  • Part # 01-0253
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:


The OWL 400 is a rugged and versatile data logger that records DC voltage with ease and convenience. Ideal for monitoring (through commercially available transducers) a wide variety of measurement parameters. All voltage signals can be converted into custom engineering units using the simple equation editor in ACR’s TrendReader® 2 software.

Features:

  • Connect virtually any device that has an analog output between 0-40 V
  • Record a variety of parameters (i.e. flow, level, Pressure, etc.)

Applications:

  • Monitoring Pressure
  • Wind speed
  • Battery voltage
  • Flow
  • Tank levels
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
CaseNORYL® Plastic
Size60mm x 48mm x 19mm (2.4" x 1.9" x 0.7")
Weight (Plastic Version)54 g (1.9 oz)
Case Material (Plastic Version)Noryl® Plastic
Battery3.6 volt Lithium
Resolution8-bit (1 part in 256)
MountingMagnetic backing or locking eyelet
Clock Accuracy± 2 seconds per day
Sampling MethodsContinuous (First-in First-out)*, Stop When Full (Fill-then-stop)
*Not available with sample rates faster than eight seconds
Operating Limits-40°C to 70°C (-40°F to 158°F) and 0 to 95% RH (non-condensing)
PC RequirementsWindows PC with at least one free USB or serial port (depending on interface)
Software RequirementsTrendReader® 2 (Compatible with Windows 2000 SP4, XP SP1 and Vista 32 bit)
CommunicationOptical data transfer; data can be transmitted through glass, water orany transparent medium up to 25mm (1") away.
Memory Size32 KB (capable of storing up to 32,767 readings)
Sampling RatesUser selectable rates from 5 seconds to once every 12 hours
Number of ChannelsOne external DC voltage channel
Input Range0 to 38.4 Volts DC maximum (32 software selectable ranges available from 0-121 mV to 0-39 V)
Input ImpedanceGreater than 100K Ohm
Logger Accuracy± 1% of full scale
Product Details
CaseNORYL® Plastic
Size60mm x 48mm x 19mm (2.4" x 1.9" x 0.7")
Weight (Plastic Version)54 g (1.9 oz)
Case Material (Plastic Version)Noryl® Plastic
Battery3.6 volt Lithium
Resolution8-bit (1 part in 256)
MountingMagnetic backing or locking eyelet
Clock Accuracy± 2 seconds per day
Sampling MethodsContinuous (First-in First-out)*, Stop When Full (Fill-then-stop)
*Not available with sample rates faster than eight seconds
Operating Limits-40°C to 70°C (-40°F to 158°F) and 0 to 95% RH (non-condensing)
PC RequirementsWindows PC with at least one free USB or serial port (depending on interface)
Software RequirementsTrendReader® 2 (Compatible with Windows 2000 SP4, XP SP1 and Vista 32 bit)
CommunicationOptical data transfer; data can be transmitted through glass, water orany transparent medium up to 25mm (1") away.
Memory Size32 KB (capable of storing up to 32,767 readings)
Sampling RatesUser selectable rates from 5 seconds to once every 12 hours
Number of ChannelsOne external DC voltage channel
Input Range0 to 38.4 Volts DC maximum (32 software selectable ranges available from 0-121 mV to 0-39 V)
Input ImpedanceGreater than 100K Ohm
Logger Accuracy± 1% of full scale
