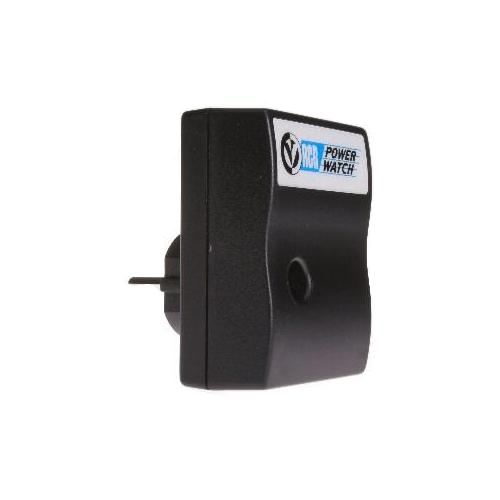

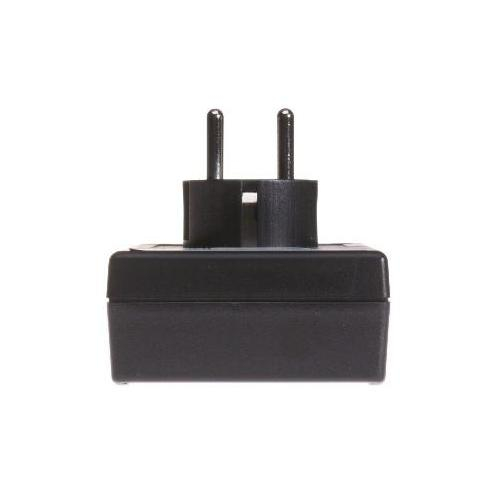

ACR, 01-0215, PowerWatch 220/240V Voltage Disturbance Recorder, European Shuko Plug

The PowerWatch Voltage® Disturbance Recorder (VDR) is an easy-to use, low-cost power quality analysis tool that troubleshoots power line disturbances such as surges, sags, impulses, outages and frequency variations. It is self-powered and easy to use - parameters can be set easily via your PC. The existence of recorded events can be indicated by the VDR's flashing light. Communication between a PC and the VDR is carried via the Lite-Link interface cable. By using this optical data transfer, the PC remains electrically isolated.

Applications:

Auditing medical instrumentation
Point-of-sale terminals
Computer servers and other sensitive electronic equipment.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Size	85mm x 68mm x 35mm (3.35" x 2.65" x 1.35")
Weight	120 g (4.00 oz)
Case Material	Noryl® Plastic
Battery	3.6 volt Lithium, 1 Amp-Hour
Fuse	1/16A fast-blow (Non-replaceable)
Clock Accuracy	± 2 seconds per day
Memory size	32 KB (4,000 events)
Sampling Methods	Continuous (First-in First-out), Stop When Full (Fill-then-stop)
Operating Limits	-40°C to 70°C (-40°F to 158°F) and 0 to 95% RH (non-condensing)
Alarm Type	Optical (flashing red LED)
Certifications	CSA: NRTL/C; UL3111-1
Event Types Detected	Surges, sags, impules, dropouts, outages, and frequency variations
Measurement Locations	Hot to Neutral and Neutral to Ground
PC Requirements	Windows PC with at least one free USB or serial port (depending on interface)
Software Requirements	PowerWatch Software (Compatible with Windows 2000 SP4, XP SP1 and Vista 32 bit)
MEASUREMENT SPECIFICATIONS
	Hot to Neutral	Neutral to Ground
Surge, Sag & Outage
Range	0 to 270V rms	3 to 150V rms
Accuracy	± 2 V rms + resolution	± 1 V rms + resolution
Resolution	2V rms	1V rms
Impulse
Range	100 to 2500V peak	50 to 2500V peak
Accuracy	±10% of reading	±10% of reading
Resolution	10V	10V
Width Detection	1 µsec minimum	1 µsec minimum
Phase Angle Accuracy	±1° (20 to 180°, 200 to 360°)	±1° (20 to 180°, 200 to 360°)
Phase Angle Resolution	1°	1°
Frequency
Range	45 to 65 Hz
Accuracy	±0.1 Hz (3 cycles minimum)
Resolution	0.1 Hz
Time Events (<1 second)
Accuracy	±0.5 cycle	±1 cycle
Resolution	0.5 cycle	1 cycle
Time Stamp (>1 second)
Accuracy	±2 seconds/day + resolution
Resolution	8 seconds

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Size	85mm x 68mm x 35mm (3.35" x 2.65" x 1.35")
Weight	120 g (4.00 oz)
Case Material	Noryl® Plastic
Battery	3.6 volt Lithium, 1 Amp-Hour
Fuse	1/16A fast-blow (Non-replaceable)
Clock Accuracy	± 2 seconds per day
Memory size	32 KB (4,000 events)
Sampling Methods	Continuous (First-in First-out), Stop When Full (Fill-then-stop)
Operating Limits	-40°C to 70°C (-40°F to 158°F) and 0 to 95% RH (non-condensing)
Alarm Type	Optical (flashing red LED)
Certifications	CSA: NRTL/C; UL3111-1
Event Types Detected	Surges, sags, impules, dropouts, outages, and frequency variations
Measurement Locations	Hot to Neutral and Neutral to Ground
PC Requirements	Windows PC with at least one free USB or serial port (depending on interface)
Software Requirements	PowerWatch Software (Compatible with Windows 2000 SP4, XP SP1 and Vista 32 bit)
MEASUREMENT SPECIFICATIONS
	Hot to Neutral	Neutral to Ground
Surge, Sag & Outage
Range	0 to 270V rms	3 to 150V rms
Accuracy	± 2 V rms + resolution	± 1 V rms + resolution
Resolution	2V rms	1V rms
Impulse
Range	100 to 2500V peak	50 to 2500V peak
Accuracy	±10% of reading	±10% of reading
Resolution	10V	10V
Width Detection	1 µsec minimum	1 µsec minimum
Phase Angle Accuracy	±1° (20 to 180°, 200 to 360°)	±1° (20 to 180°, 200 to 360°)
Phase Angle Resolution	1°	1°
Frequency
Range	45 to 65 Hz
Accuracy	±0.1 Hz (3 cycles minimum)
Resolution	0.1 Hz
Time Events (<1 second)
Accuracy	±0.5 cycle	±1 cycle
Resolution	0.5 cycle	1 cycle
Time Stamp (>1 second)
Accuracy	±2 seconds/day + resolution
Resolution	8 seconds
