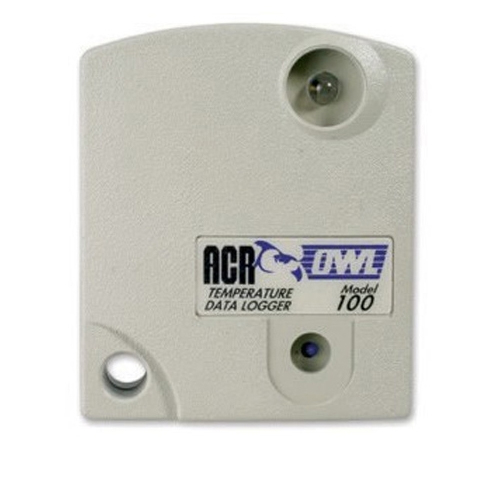

Owl 100 - Temperature - Water Resistant Single-Channel Internal Temperature Data Logger

The OWL 100 data logger records temperature in environments that typical data loggers cannot withstand. This model is also available in a water-resistant polyurethane enclosure (OWL-100 POLY) so it can be used in hostile environments where vibration or excess moisture is present.

Features:

Compact and small, monitor temperature virtually anywhere
Water-resistant version available

Applications:

Food process verification
Pharmaceutical storage laboratories
Transportation of temperature-sensitive goods
Equipment run time
HVAC system testing and balancing

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Case

Polyurethane (water-resistant)

Size

60mm x 48mm x 19mm (2.4" x 1.9" x 0.7")

Weight
(Plastic Version)

54 g (1.9 oz)

Weight
(Water-Resistant Version)

80 g (2.8 oz)

Case Material
(Plastic Version)

Noryl® Plastic

Case Material
(Water-Resistant Version)

Polyurethane

Battery

3.6 volt Lithium

Resolution

8-bit (1 part in 256)

Mounting

Magnetic backing or locking eyelet

Clock Accuracy

± 2 seconds per day

Sampling Methods

Continuous (First-in First-out)*, Stop When Full (Fill-then-stop)
*Not available with sample rates faster than eight seconds

Operating Limits

-40°C to 70°C (-40°F to 158°F)

Submergence Rating

IP67 - 1M (3.28") in fresh water for 30 minutes (OWL-100 Poly)

PC Requirements

Windows PC with at least one free USB or serial port (depending on interface)

Software Requirements

TrendReader® 2 (Compatible with Windows 2000 SP4, XP SP1 and Vista 32 bit)

Communication

Optical data transfer; data can be transmitted through glass, water orany transparent medium up to 25mm (1") away.

Memory Size

32 KB (capable of storing up to 32,767 readings)

Sampling Rates

User selectable rates from 5 seconds to once every 12 hours

Number of Channels

One (1):

One (1) internal channel for ambient temperature

TEMPERATURE SENSOR SPECIFICATIONS

Type

NTC Thermistor

Range

-40°C to 70°C (-40°F to 158°F)

Total Accuracy*

±0.5°C @ 25°C (±0.9°F @ 77°F)
*Can be increased by using narrow range feature

Resolution

0.5°C @ 25°C (0.9°F @ 77°F); better than 1°C (1.8°F) between -25°C and 70°C
(-13°F and 158°F); better than 2.0°C (3.6°F) between -40°C and -25°C
(-40°F and -13°F)

Measurement Range

Over 200 software selectable ranges available (measurement spans as narrow as10°C [18°F] and as wide as 110°C [200°F])

Product Details

Case

Polyurethane (water-resistant)

Size

60mm x 48mm x 19mm (2.4" x 1.9" x 0.7")

Weight
(Plastic Version)

54 g (1.9 oz)

Weight
(Water-Resistant Version)

80 g (2.8 oz)

Case Material
(Plastic Version)

Noryl® Plastic

Case Material
(Water-Resistant Version)

Polyurethane

Battery

3.6 volt Lithium

Resolution

8-bit (1 part in 256)

Mounting

Magnetic backing or locking eyelet

Clock Accuracy

± 2 seconds per day

Sampling Methods

Continuous (First-in First-out)*, Stop When Full (Fill-then-stop)
*Not available with sample rates faster than eight seconds

Operating Limits

-40°C to 70°C (-40°F to 158°F)

Submergence Rating

IP67 - 1M (3.28") in fresh water for 30 minutes (OWL-100 Poly)

PC Requirements

Windows PC with at least one free USB or serial port (depending on interface)

Software Requirements

TrendReader® 2 (Compatible with Windows 2000 SP4, XP SP1 and Vista 32 bit)

Communication

Optical data transfer; data can be transmitted through glass, water orany transparent medium up to 25mm (1") away.

Memory Size

32 KB (capable of storing up to 32,767 readings)

Sampling Rates

User selectable rates from 5 seconds to once every 12 hours

Number of Channels

One (1):

One (1) internal channel for ambient temperature

TEMPERATURE SENSOR SPECIFICATIONS

Type

NTC Thermistor

Range

-40°C to 70°C (-40°F to 158°F)

Total Accuracy*

±0.5°C @ 25°C (±0.9°F @ 77°F)
*Can be increased by using narrow range feature

Resolution

0.5°C @ 25°C (0.9°F @ 77°F); better than 1°C (1.8°F) between -25°C and 70°C
(-13°F and 158°F); better than 2.0°C (3.6°F) between -40°C and -25°C
(-40°F and -13°F)

Measurement Range

Over 200 software selectable ranges available (measurement spans as narrow as10°C [18°F] and as wide as 110°C [200°F])

Note

Note: Please read description carefully. Do not base your order on the picture presented.
