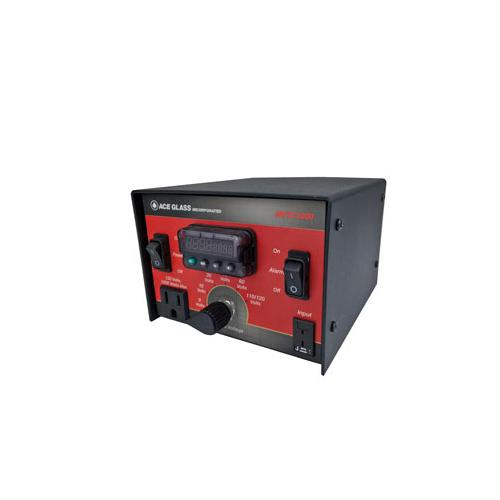

Ace Glass, 12335-25, K Type Temp. Controller, 1/4" x 12" Inconel Probe & 72" SMP lead
This control is a single output PID control with the capability of adjusting the AC output voltage with fixed positions and ideal for small heat loads. This control displays both the setpoint and process temperature and uses the most modern PID control technology for the best temperature stability. The Auto-tune feature minimizes setpoint overshoot and learns your process. Changing your setpoint is easily done with the interface keys. Several sensor input types are available. This unit comes with an audible alarm function, 6’ detachable power cord and grid support bracket, which is ideal for fume hood mounting to maximize bench space. This model of control can accept a type "J", “K”, or “T” thermocouple, depending on the model ordered. The control automatically sets the PID parameters through a "learning" sequence in the auto-tuning mode. PID parameters include proportional band, reset/integral and rate/derivative. User-friendly features include automatic LED indicators to aid in monitoring and setup, as well as dual LED displays for process temperature and set point indication. This control automatically stores all information in a non-volatile memory.
Features:
- On/Off power switch.
- On/Off alarm switch.
- 10Amp MAX load output.
- Circuit protection (fused)
- Audible alarm.
- USB Communication
Temperature overshoot
In most cases this is due to a small sample size being heated with a high wattage heater. The control is set at the factory with the Power Scale High Output 1 with a value of 100. This value can be adjusted in the setup menu, reference page 5 and 6 for instructions on how to change value. The Power Scale Output 1 is located in
