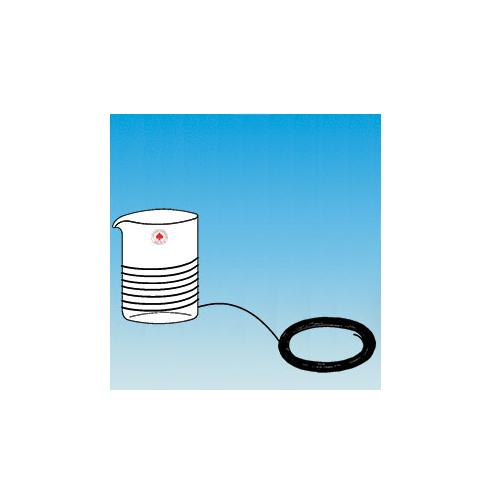

50ft Fiberglass Insulated Heat Electrical Wire, 25 Gauge
This electrically insulated 25 gauge nichrome wire can be wound closed or open spaced. Max.temp 594 degreeC. The wire is approx. 1mm in diameter and has a resistivity of 2.1ohms/foot at 20 degree C; maximum ampere rating in open air at 594 degreeC is 3.7amps. The amperes are derated when enclosed and tightly wound; typical for 316 degree C operation is 2.5 amps. Electrical insulation voltage is 1000V The use of a line voltage controller is recommended to properly power the heater element. Packaged in 50 foot lengths.
We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.
Note: Please read description carefully. Do not base your order on the picture presented.
