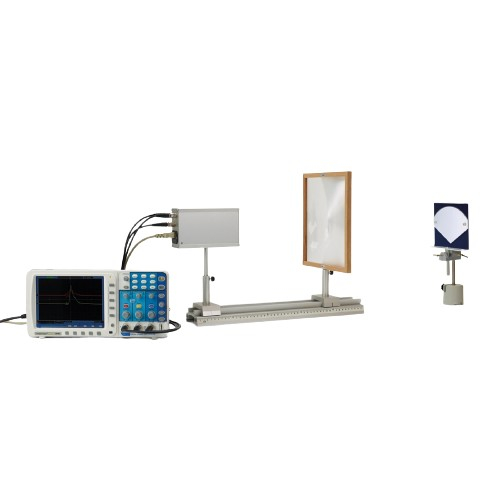

3B Scientific, UE4060100-115, Experiment for Optics: Determination of the Velocity of Light, 115 V, 50/60 Hz
UE4060100-115 Includes Only:
- Speed of Light Meter (115 V, 50/60 Hz)
- Digital Oscilloscope, 2x100 MHz
- Barrel Foot, 900 g
- Stainless Steel Rod, 1500 mm
- Universal Clamp
- Pocket Measuring Tape, 2 m
- Optical Bench with metric mm and cm scales, 500 mm
- Optical Rider U, 75 mm - 2 pcs
Features:
The fact that light is propagated at a finite speed can be demonstrated by a simple transit time measurement. This is achieved by using very short light pulses of only a few nanoseconds duration and determining the time for them to travel out and back over a distance of several metres, which is measured by an oscilloscope. From the transit time and the distance from the transmitter to a triple-prism reflector one can calculate the velocity of light.
For more information, please see
Data Sheet
