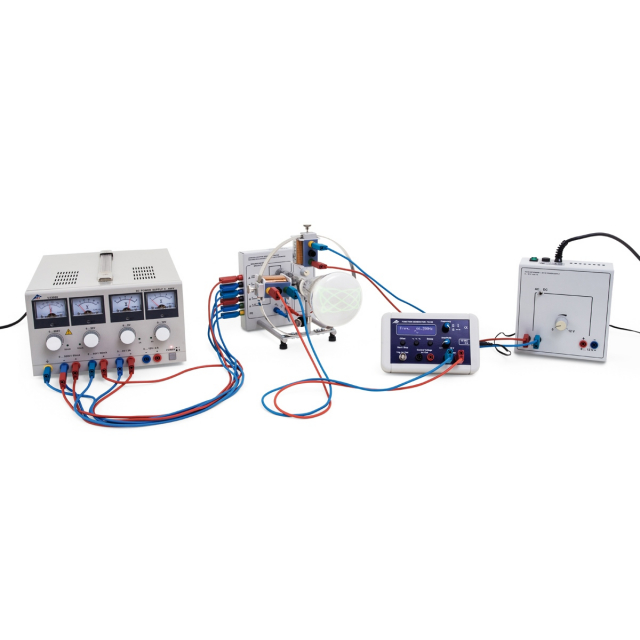

3B Scientific, UE3070850-230, Experiment for Electricity: Training Oscilloscope II, 230 V, 50/60 Hz
UE3070850-230 Includes Only:
- Training Oscilloscope
- DC Power Supply 0-500 V (230 V, 50/60 Hz)
- Function Generator FG 100 (230 V, 50/60 Hz)
- AC/DC Power Supply (Stabilized) 0-12 V, 3 A (230 V, 50/60 Hz)
- Set of 15 Safety Experiment Leads, 75 cm
Features:
The absence of interference when magnetic fields are superposed in a vacuum is demonstrated using a Braun tube. This is done by observing the displacements of the focused spot on the fluorescent screen of the tube. The experiments can be extended to include alternating magnetic fields with identical and different frequencies. The Lissajous' figures observed on the screen depend critically on the relation between the frequencies of the two magnetic fields and on their phase relation.
